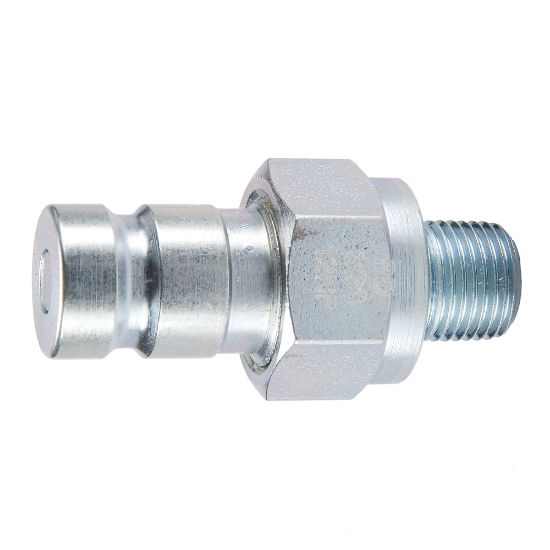

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Test Port and Diagnostic Quick Couplings (SAE J1502 / ISO 15171-1/Compucheck) - PD Series - PD341Y

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Backordered
Partner Available:	Backordered

SKU: PD341Y

$28.85

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Product Type	Push to Connect
Minimum Operating Temperature	-15 °F	Body Size	1/8 inch
Division	Quick Coupling Division	Flow Rate	0.8 Gal/min
Maximum Operating Pressure	6000 psi	Specifications Met	SAE J1502
Maximum Operating Temperature	400 °F	Plating Type	Zinc with clear trivalent chromate
Hex Size	0.69 inch	Application	Diagnostics
Body Material	Steel	Valve Type	Non-spill
Connection Type	Male UNF	Tube Size (inch)	na
Connection Thread Size (inch)	7/16 - 20	Coupling Half	Male Nipple

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
