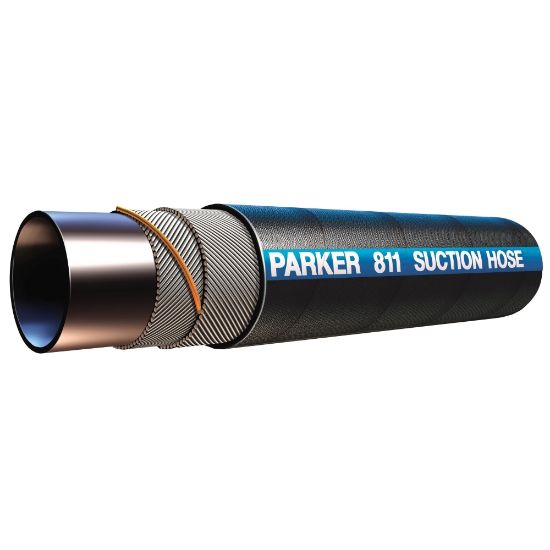

Suction and Return Line Hose 62-300 PSI – 811 Hose - 811-40

Parker’s 811 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications.

Availability:	63 in stock
Partner Available:	984 in stock

SKU: 811-40

$51.41

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °C	Division	Hose Products Division
Maximum Operating Temperature	212 °F	Application	Petroleum Base Hydraulic Fluids
Media	Lubricants	Cover Material	Synthetic Rubber
Hose Cover Type	Standard Cover	Inside Diameter	2-1/2 inch
Hose Inner Tube Material	Synthetic Rubber	Nominal Hose Inside Diameter	63 mm
Outside Diameter	3 inch	Minimum Bend Radius	178 mm
Weight	2.45 kg/m	Maximum Operating Pressure	4 bar (w/ 88HC)
Compatible Fitting	81 Series	Specifications Met	SAE 100R4
Vacuum Pressure Rating	25 Inch-Hg	Hose Reinforcement Material	Multiple Layers of Spiral Fiber with Wire Helix
Hose I.D. (size)	-40
