*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

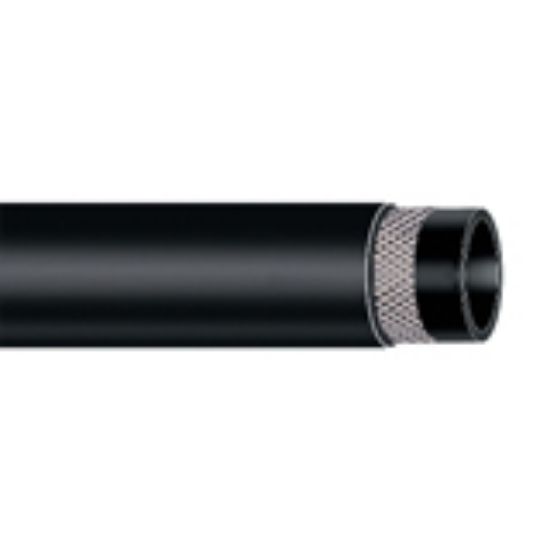

OBSOLETE: Multipurpose Transfer Hose - Jiffy - IH7212501BK/40

Name: OBSOLETE: Multipurpose Transfer Hose - Jiffy - IH7212501BK/40
SKU: IH7212501BK/40
Availability: OutOfStock

This product is no longer available – please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:

Backordered

SKU: IH7212501BK/40

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	212 °F	Weight	0.23 kg/m
Compatible Fitting	n/a	Cover Material	Chloroprene Rubber (CR) MSHA approved
Outside Diameter	19 mm	Application	Multipurpose
Minimum Operating Temperature	-40 °F	Inside Diameter	13 mm
Hose Inner Tube Material	Nitrile Butadiene Rubber (NBR)	Design Factor	4:1
Media	Fuels (Biodiesel, Diesel, Ethanol, Gasoline) - Check fuel type with our catalogue chart.	Maximum Operating Pressure	300 psi
Vacuum Pressure Rating	26.58 Inch-Hg	Minimum Bend Radius	5 inch
Hose Reinforcement Material	1 Braid of Textile
Hose I.D. (mm)	13

Product resources

Literature and Reference Materials

CAT 4800, Industrial Hose
