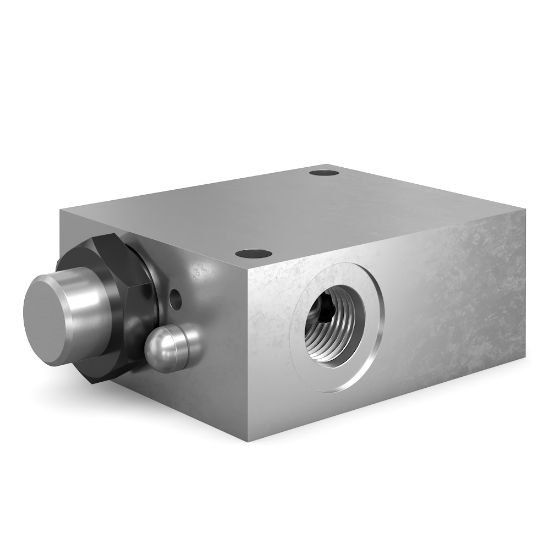

Standard Pilot Vented Load Control Valves - MHB-015-WBDE-51N

Name: Standard Pilot Vented Load Control Valves - MHB-015-WBDE-51N
SKU: MHB-015-WBDE-51N
Availability: OutOfStock

Parker’s vented load control valves are designed to operate independent of downstream pressure to prevent runaway loads under all dynamic conditions, handling pressures up to 350 bar (5000 psi) and flows up to 113 lpm (30 gpm).

Availability:

Backordered

SKU: MHB-015-WBDE-51N

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Maximum Operating Pressure	3000 psi
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	15 Gal/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Pilot Location	Internal	Minimum Operating Temperature	-30 °F
Body Material	Aluminum	Weight	1.36 kg
Adjustment Mechanism	Tamper Resistant	Maximum Inlet Pressure Rating	3000 psi
Function	Counterbalance Valve	Pilot Pressure Ratio	3:1
Holding Pressure	210 bar	Cavity Size	n/a
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+250 °F
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-30 to +250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Installation Torque	N/A lb-ft
Actuation Type	Pilot Operated, Vented	Flow Rate	56 L/min
Leak Rate	5 @ 80% of setting drops/min	Port Size	SAE-6
Mounting Type	Double Inline	Flow Direction	Cylinder port C, Valve port V
Pressure Control Range	105-210 bar	Pressure Control Sensitivity	N/A psi
Seal Material	Nitrile	Adjustment Mechanism	Tamper Resistant
Pilot Pressure Ratio	3:1	Pressure Control Range	500-1500 PSI, 34.5-103.4 BAR
Maximum Flow Rate	15 GAL/MIN, 56 L/MIN	Port Size	SAE-6
Mounting Type	Double Inline	Holding Pressure	1500 PSI, 103.4 BAR
