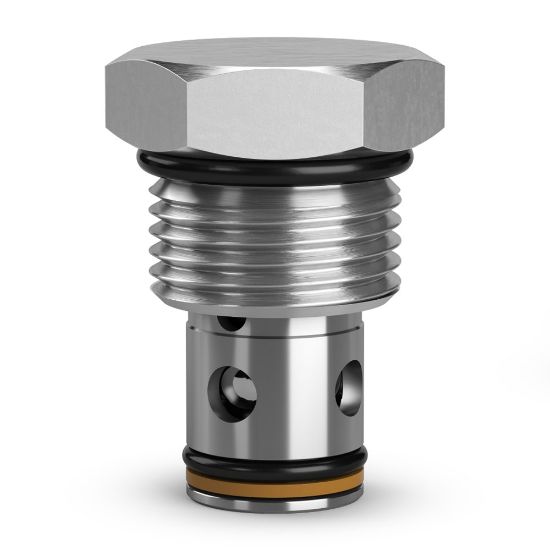

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Standard Check Valves - D04B2-10.0V

Name: Standard Check Valves - D04B2-10.0V
SKU: D04B2-10.0V
Availability: OutOfStock

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

Availability:

Backordered

SKU: D04B2-10.0V

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.08 kg	Maximum Operating Temperature	400 °F
Seal Material	Fluorocarbon	Maximum Operating Pressure	6000 psi
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Minimum Operating Temperature	-26 °C	Operating Temperature	-15 to 400 °F
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	For Fluid Type	Mineral-based Hydraulic Fluids
Filter Efficiency Rating	SAE Class 4	Actuation Type	Pressure Sensing
Maximum Flow Rate	42 Gal/min	Division	Mobile Hydraulic Systems Division Europe
Cavity Size	C10-2	Valve Material	Steel (all parts)
Installation Torque	37 lb-ft	Maximum Inlet Pressure Rating	6000 psi
Function	Standard Check	Flow Direction	2-1 Checked
Cracking Pressure	145 psi	Flow Rate	24 Gal/min @ 100 Psi (7 bar) Nominal
Leak Rate	3 drops/min @ 6000 Psi (420 bar)
Seal Material	Fluorocarbon	Cracking Pressure	145 PSI, 10 BAR
Maximum Flow Rate	42 GAL/MIN, 160 L/MIN
