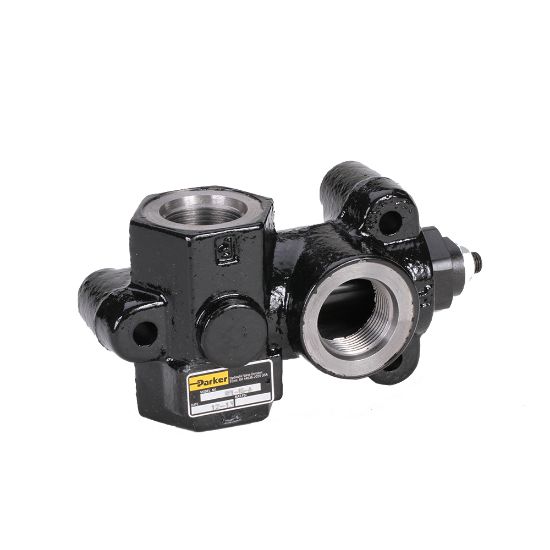

Pilot Operated Relief Valve - RPL Series - RPL-75-A

Name: Pilot Operated Relief Valve - RPL Series - RPL-75-A
SKU: RPL-75-A
Availability: OutOfStock

Parker’s RPL In-line Relief Valve rated at 60 GPM is designed for limiting the maximum pressure which can be applied to the portion of the hydraulic circuit where it is installed.

Availability:

Backordered

SKU: RPL-75-A

Qty:

Products specifications

Attribute name	Attribute value
Pressure Control Range	Adjustable	Adjustment Mechanism	Adjustable
Seal Material	Nitrile	Connection Type	NPT
Product Style	Pilot Operated Relief Valve	For Fluid Type	Hydraulic Oil
Minimum Operating Temperature	-40 °F	Maximum Operating Pressure	2000 psi
Maximum Operating Temperature	+200 °F	Body Material	High Strength Cast Iron
Weight	6 lb	Division	Hydraulic Valve Systems Division
Actuation Type	Hydraulic Pressure	Connection Size	3/4"
Maximum Flow Rate	60 Gal/min	Mounting Type	In-Line
Port Size	3/4" NPT
