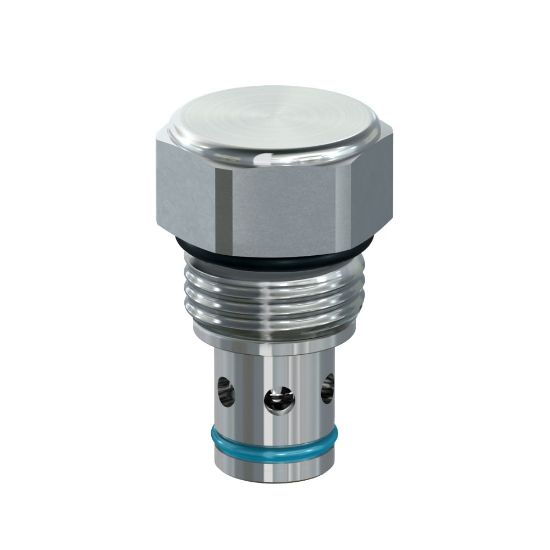

Standard Check Valves - CVH081P65

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

Availability:	Backordered
Partner Available:	20 in stock

SKU: CVH081P65

$20.50

Products specifications

Attribute name	Attribute value
Weight	0.1 kg	Flow Rate	n/a
Body Material	n/a	Maximum Operating Pressure	5000 psi
Division	Hydraulic Cartridge Systems Division	Minimum Operating Temperature	-37 °C
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
For Fluid Type	Synthetic Hydraulic Fluids	Valve Material	Hardened Steel
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Operating Temperature	200 °F
Actuation Type	Pressure Sensing	Cavity Size	C08-2
Maximum Inlet Pressure Rating	350 bar	Seal Material	D-Ring (Standard)
Operating Temperature	-35 to 200 °F	Maximum Flow Rate	38 L/min
Cracking Pressure	4.5 bar	Leak Rate	2
Function	Standard Check	Installation Torque	32 to 36 lb-ft
Flow Direction	1-2 Free Flow
Seal Material	D-Ring (Standard)	Cracking Pressure	65 PSI, 4.5 BAR
Maximum Flow Rate	10 GAL/MIN, 38 L/MIN
