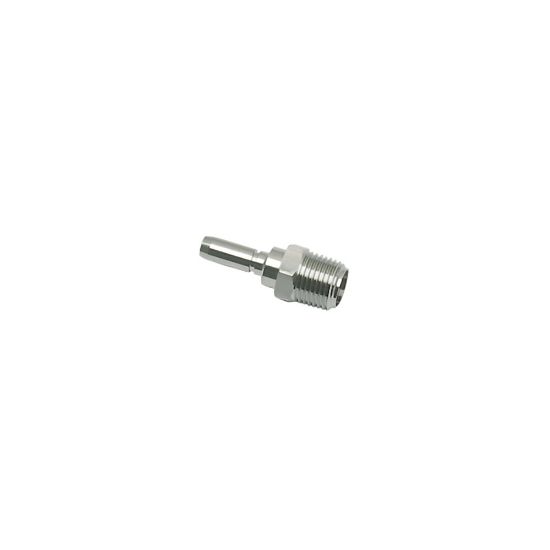

Metal Quick-Acting Couplers - 0184 02 10

Name: Metal Quick-Acting Couplers - 0184 02 10
SKU: 0184 02 10
Availability: OutOfStock

Parker Legris offers a range of metal couplers compatible with a large selection of fluids.
Simple to install, with or without shut-off valves, these couplers offer a high flow rate capability.

Availability:

Backordered

SKU: 0184 02 10

Qty:

Products specifications

Attribute name	Attribute value
Media	Compressed air, water	Weight	0.006 kg
Quantity per Box	10	Division	Low Pressure Connectors Europe Division
Maximum Operating Pressure	20 barg	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Application	Workshops, Flushing, Spraying, Packaging, Factory Automation, Filling Systems, Cleaning
Handle Type	na
Product Type	Metal Quick Acting Coupler	Body Material	NICKEL PLATED BRASS
Connection 1 Thread Size (metric)	R1/8	Color	na
Gripping Ring	na	O-Ring Material	na
Diameter Nominal (DN)	2	Connection 1 Thread Style	BSPT
Connection 2 Tube O.D. (mm)	na	Connection 3 Tube O.D. (mm)	na
