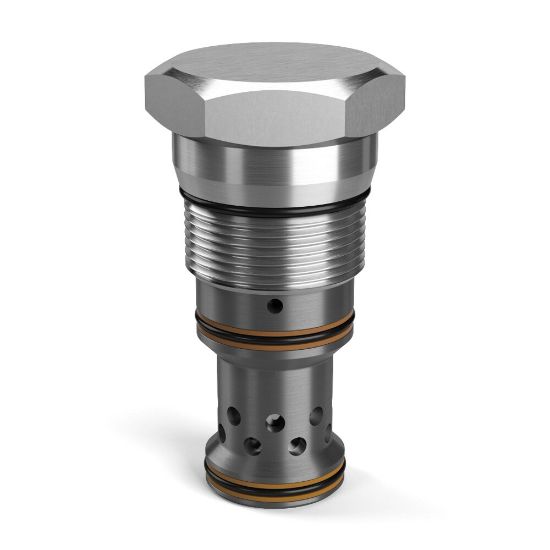

Spool Type Logic Element - R08F3-20.0N

Name: Spool Type Logic Element - R08F3-20.0N
SKU: R08F3-20.0N
Availability: OutOfStock

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:

Backordered

SKU: R08F3-20.0N

Qty:

Products specifications

Attribute name	Attribute value
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Configuration	Normally Closed
Operation Type	Pilot Operated	Function	Logic Valve
Installation Torque	150 Nm	Valve Material	All parts steel. All operating parts hardened steel
Division	Mobile Hydraulic Systems Division Europe	Leak Rate	90 @ 1450 PSI (BAR) cm3/min
Actuation Type	Vent to Open	Division	Hydraulic Cartridge Systems Division
Minimum Operating Temperature	-30 °F	Flow Direction	Nose to Side (1-2)
Body Material	n/a	Cavity Size	C20-3S
Pilot Location	Internal	Operating Temperature	-34 to +121 °C
Vented	Internal	Seal Material	Nitrile
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Switching Pressure	290 psi
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Operating Temperature	+250 °F
Weight	1.52 lb	Flow Rate	340 @ 100 PSI (7 BAR) Nominal L/min
Maximum Operating Pressure	420 bar	Dampening Orifice Included	Yes
Maximum Flow Rate	132 Gal/min	Maximum Inlet Pressure Rating	6000 psi
Switching Pressure	290 PSI, 20 BAR	Dampening Orifice Included	Yes
Seal Material	Nitrile	Maximum Flow Rate	132 GAL/MIN, 500 L/MIN
Flow Direction	Nose to Side (1-2)	Configuration	Normally Closed
