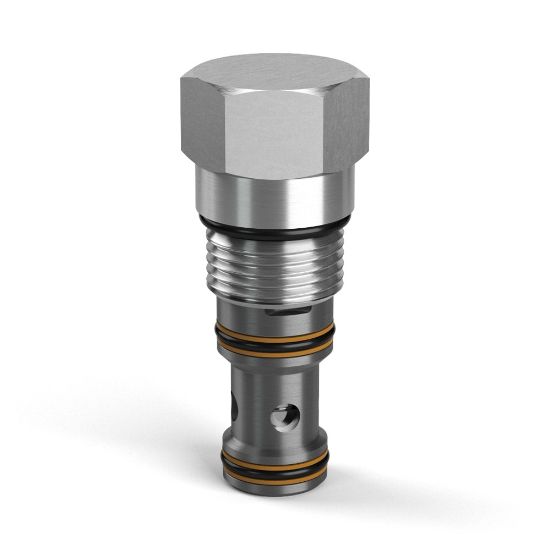

Spool Type Logic Element - R04G3-15.0N

Name: Spool Type Logic Element - R04G3-15.0N
SKU: R04G3-15.0N
Availability: OutOfStock

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:

Backordered

SKU: R04G3-15.0N

Qty:

Products specifications

Attribute name	Attribute value
Operation Type	Pilot Operated	Seal Material	Nitrile
Maximum Operating Pressure	6000 psi	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Weight	0.3 lb
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Function	Logic Valve
Cavity Size	C10-3S	Vented	External
Actuation Type	Vent to Close	Flow Direction	Side to Nose (2-1)
Pilot Location	Internal	Dampening Orifice Included	Yes
Minimum Operating Temperature	-34 °C	Division	Mobile Hydraulic Systems Division Europe
Installation Torque	50 Nm	Maximum Inlet Pressure Rating	6000 psi
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+121 °C
Configuration	Normally Open	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-34 to +121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Switching Pressure	15 bar	Flow Rate	9.2 @ 100 PSI (7 BAR) Nominal Gal/min
Leak Rate	50 @ 1450 PSI (BAR) cm3/min	Maximum Flow Rate	45 Gal/min
Seal Material	Nitrile	Maximum Flow Rate	15 GAL/MIN, 57 L/MIN
Configuration	Normally Open	Flow Direction	Side to Nose (2-1)
Dampening Orifice Included	Yes	Switching Pressure	218 PSI, 15 BAR
