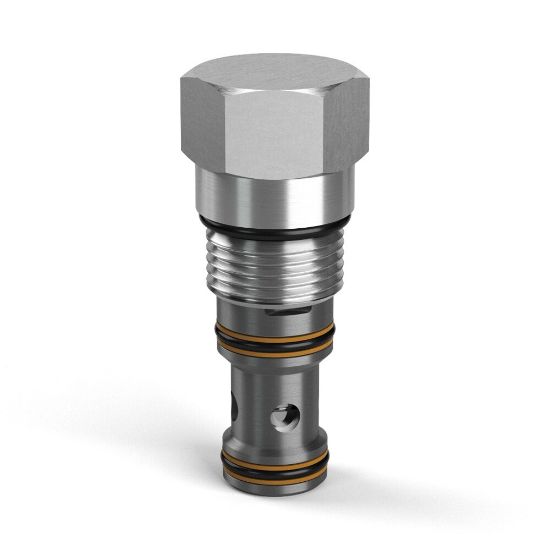

Spool Type Logic Element - R04H3-10.0V

Name: Spool Type Logic Element - R04H3-10.0V
SKU: R04H3-10.0V
Availability: OutOfStock

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:

Backordered

SKU: R04H3-10.0V

Qty:

Products specifications

Attribute name	Attribute value
Operation Type	Pilot Operated	Maximum Operating Pressure	420 bar
Seal Material	Fluorocarbon	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Minimum Operating Temperature	-15 °F
Weight	0.3 lb	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Function	Logic Valve	Cavity Size	C10-3S
Dampening Orifice Included	No	Vented	External
Actuation Type	Vent to Close	Flow Direction	Side to Nose (2-1)
Pilot Location	Internal	Division	Mobile Hydraulic Systems Division Europe
Installation Torque	50 Nm	Maximum Inlet Pressure Rating	420 bar
Maximum Flow Rate	170 L/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+204 °C	Configuration	Normally Open
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-15 to +400 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Switching Pressure	10 bar
Flow Rate	35 @ 100 PSI (7 BAR) Nominal L/min	Leak Rate	50 @ 1450 PSI (BAR) cm3/min
Seal Material	Fluorocarbon	Maximum Flow Rate	15 GAL/MIN, 57 L/MIN
Dampening Orifice Included	No	Configuration	Normally Open
Flow Direction	Side to Nose (2-1)	Switching Pressure	145 PSI, 10 BAR
