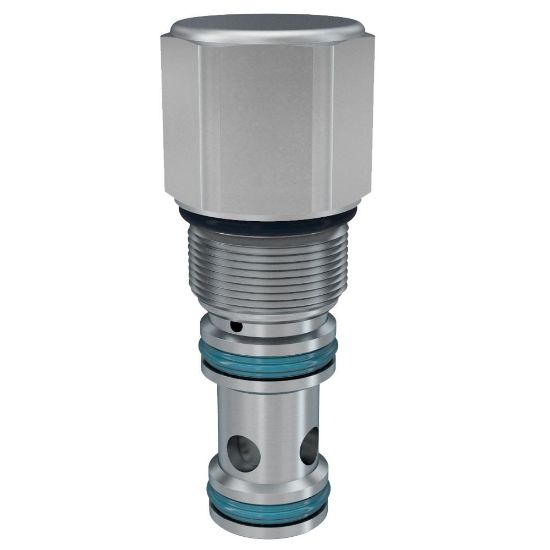

Spool Type Logic Element - LE102A20

Name: Spool Type Logic Element - LE102A20
SKU: LE102A20
Availability: OutOfStock

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:

Backordered

SKU: LE102A20

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.14 kg	Maximum Operating Pressure	345 bar
Operation Type	Pilot Operated	Body Material	n/a
Division	Hydraulic Valve Systems Division	Actuation Type	Pilot to Close
Flow Direction	Nose to Side (1-2)	Maximum Flow Rate	57 L/min
Minimum Operating Temperature	-35 °F	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Function	Logic Valve
Cavity Size	C10-3S	Dampening Orifice Included	No
Vented	External	Pilot Location	Internal
Maximum Operating Temperature	+200 °F	Flow Rate	n/a L/min
Maximum Inlet Pressure Rating	5000 psi	Seal Material	D-Ring (Standard)
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Configuration	Normally Closed
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operating Temperature	-37 to +93 °C	Leak Rate	82 @ 3000 PSI (207 BAR) cm3/min
Switching Pressure	290 psi	Installation Torque	16-20 lb-ft
Flow Direction	Nose to Side (1-2)	Maximum Flow Rate	15 GAL/MIN, 57 L/MIN
Configuration	Normally Closed	Dampening Orifice Included	No
Seal Material	D-Ring (Standard)	Switching Pressure	290 PSI, 20 BAR
