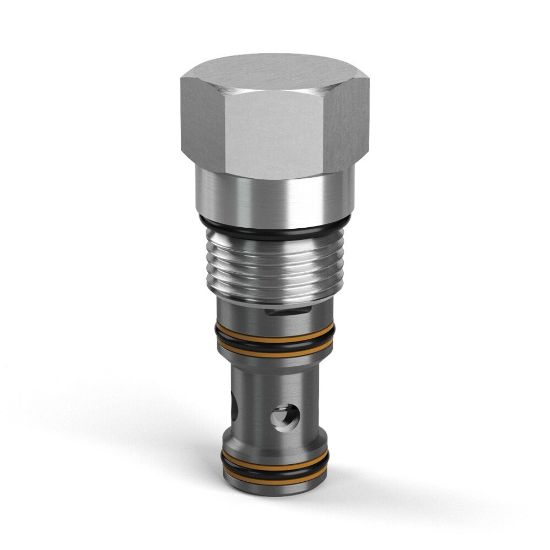

Spool Type Logic Element - R04F3-15.0N

Name: Spool Type Logic Element - R04F3-15.0N
SKU: R04F3-15.0N
Availability: OutOfStock

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:

Backordered

SKU: R04F3-15.0N

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.14 kg	Operation Type	Pilot Operated
Seal Material	Nitrile	Maximum Operating Pressure	6000 psi
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Flow Direction	Nose to Side (1-2)	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Vented	Internal	Function	Logic Valve
Cavity Size	C10-3S	Actuation Type	Vent to Open
Pilot Location	Internal	Dampening Orifice Included	Yes
Minimum Operating Temperature	-30 °F	Division	Mobile Hydraulic Systems Division Europe
Installation Torque	50 Nm	Maximum Inlet Pressure Rating	6000 psi
Maximum Flow Rate	170 L/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+250 °F	Configuration	Normally Closed
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-30 to +250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Switching Pressure	15 bar
Flow Rate	26 @ 100 PSI (7 BAR) Nominal Gal/min	Leak Rate	50 @ 1450 PSI (BAR) cm3/min
Seal Material	Nitrile	Flow Direction	Nose to Side (1-2)
Configuration	Normally Closed	Dampening Orifice Included	Yes
Switching Pressure	215 PSI, 15 BAR	Maximum Flow Rate	45 GPM, 170 L/MIN
