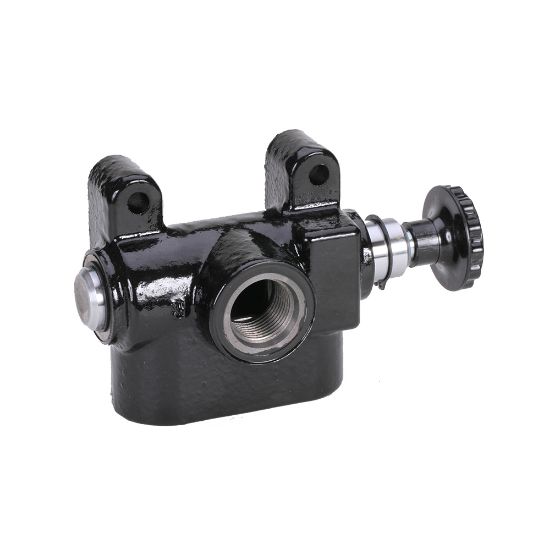

Selector Valve - S & H Series - HM-38

Name: Selector Valve - S & H Series - HM-38
SKU: HM-38
Availability: OutOfStock

Parker’s S, H, SM, & HM are two position Selector Valves. The S & SM Models are designed for directing an input flow to two different selectable circuits. The H & HM Models are designed for adding float (or freewheeling) functionality to a circuit.

Availability:

Backordered

SKU: HM-38

Qty:

Products specifications

Attribute name	Attribute value
Connection Type	NPT	Adjustment Mechanism	Knob
Function	Selector Valve	Maximum Operating Pressure	2000 psi
Maximum Flow Rate	10	For Fluid Type	Hydraulic Oil
Weight	2.3 lb	Division	Hydraulic Valve Systems Division
Body Material	High Strength Cast Iron	Minimum Operating Temperature	-40 °F
Maximum Operating Temperature	+200 °F	Connection Size	3/8"
Seal Material	Nitrile	Actuation Type	Manual
Mounting	Manifold	Style	Float Selector
Port Size	3/8-NPT
