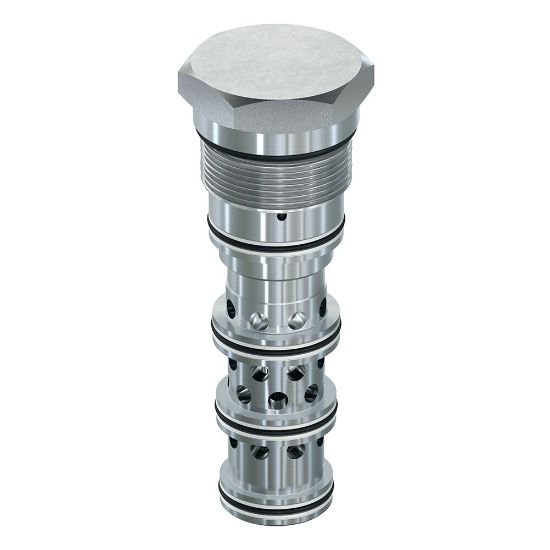

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

3 Way/2 Position Pilot Operated Directional Control Valves - N5C300-3.0N

Name: 3 Way/2 Position Pilot Operated Directional Control Valves - N5C300-3.0N
SKU: N5C300-3.0N
Availability: OutOfStock

Parker’s N5 valves are high flow / high pressure 3-way 2-position spool-type pilot-operated cartridge valves that can be used to control direction, pressure, or flow.

Availability:

Backordered

SKU: N5C300-3.0N

Qty:

Products specifications

Attribute name	Attribute value
Valve Material	All parts steel. All operating parts hardened steel	Division	Mobile Hydraulic Systems Division Europe
Weight	2.2 lb	Function	Diverter
Operation Type	Pilot Operated	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Drain Option	External	Maximum Operating Temperature	+121 °C
Installation Torque	118 lb-ft	Actuation Type	Switching
Maximum Flow Rate	105 Gal/min	Configuration	Normally Open
Standard Flow Rate Setting	130 (3 to 2), 240 (3 to 4) L/min	Flow Direction	2-3-4 Neutral, 2,3,4 Blocked Piloted
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Pilot Location	External
Maximum Operating Pressure	420 bar	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Leak Rate	400 @ 2900 PSI (200 BAR) cm3/min	Cavity Size	100-1
Operating Temperature	-30 to +250 °F	Flow Rate	400 L/min
Seal Material	Nitrile	Body Material	n/a
Minimum Operating Temperature	-30 °F	Switching Pressure	44 psi
Maximum Inlet Pressure Rating	420 bar
Switching Pressure	44 PSI, 3 BAR	Flow Rate	105 GAL/MIN, 400 L/MIN
Flow Direction	2-3-4 Neutral, 2,3,4 Blocked Piloted	Seal Material	Nitrile
Standard Flow Rate Setting	34 (3 to 2), 63 (3 to 4) GAL/MIN, 130 (3 to 2), 240 (3 to 4) L/MIN	Configuration	Normally Open
