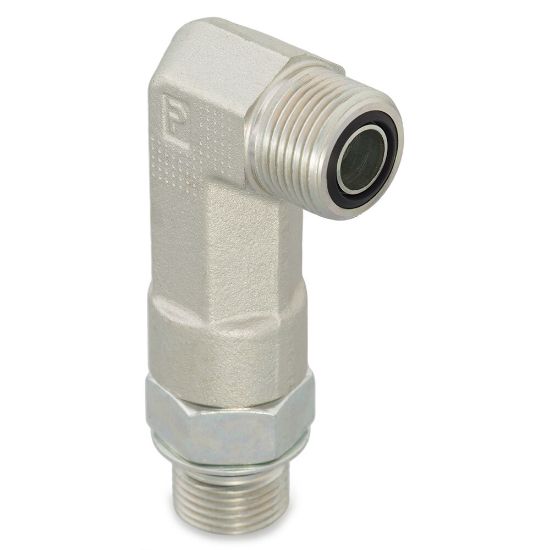

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 10 CC5OLO-S

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Backordered
Partner Available:	54 in stock

SKU: 10 CC5OLO-S

$66.74

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Maximum Dynamic Pressure	6000 psi
Body Material	Steel	Dimensional Weight	0.22473021582733813 lb
O-Ring Material	90 Durometer Nitrile	Specifications Met	SAE J1453
Shape	90° Elbow	Connection Type	O-ring Face Seal
Connection 1 Type	Male O-Ring Face Seal	Connection 2 Type	Male SAE-ORB - Long
Connection 3 Type	na	Connection 4 Type	na
Connection 2 Thread Size	7/8-14 inch	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	5/8 inch	Connection 2 Tube Outside Diameter	na
Connection 3 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na
