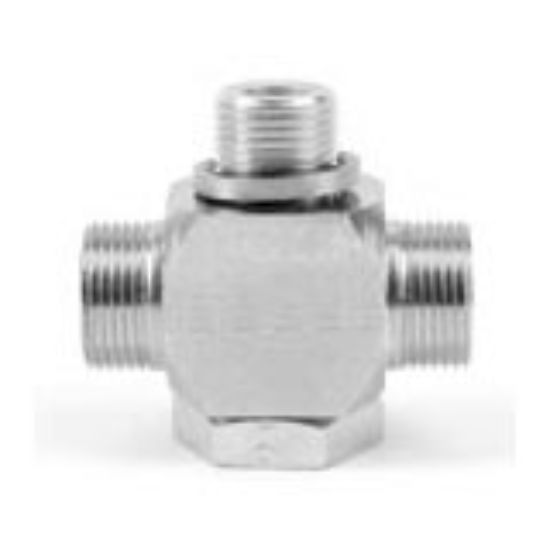

Ermeto DIN banjo fittings - TH06ZLRKDSCF

Name: Ermeto DIN banjo fittings - TH06ZLRKDSCF
SKU: TH06ZLRKDSCF
Availability: OutOfStock

The main function of Ermeto DIN banjo fittings is to connect different numbers of tubes or hoses. This broad range of DIN fittings is available in steel and in stainless steel.

Availability:

Backordered

SKU: TH06ZLRKDSCF

Qty:

Products specifications

Attribute name	Attribute value
Body Material	Steel	Connection 1 Type	Male
Connection 2 Type	Male	Technology	Fluid & Gas Handling
Maximum Operating Pressure	315 bar	Division	High Pressure Connectors Europe Division
Application	Hydraulics	For Fluid Type	Steam
Division	High Pressure Connectors Europe Division	Industry	Automotive
Connection 1 Size	6 mm Tube O.D.	Connection 2 Size	6 mm Tube O.D.
Minimum Fluid Temperature	-40 °F	Configuration	Tube to Port
Connection 3 Type	BSPP	Product Type	Hydraulic DIN Fittings
Brand	Ermeto	Specifications Met	ISO 1179
Accessories Included	Pre-assembled with EO-2 Functional Nut	Product Series	EO Light
Maximum Fluid Temperature	300 °C	Minimum Ambient Temperature	-40 °C
Maximum Ambient Temperature	300 °C	Product Style	Adjustable Position
Shape	Branch Tee	Connection 3 Size	G 1/8 A inch Thread
Seal Material	NBR (Eolastic)	Seal Type	Soft Seal
Body Material	Steel	Shape	Branch Tee
Connection 3 Type	Male BSPP	Accessories Included	Pre-assembled with EO-2 Functional Nut
Connection 1 Type	Male 24° Cone	Product Series	EO Light
Connection 2 Size	6 mm (O.D.)	Connection 2 Type	Male 24° Cone
Connection 3 Size	G 1/8 A	Seal Type	Soft Seal
Connection 1 Size	6 mm O.D
