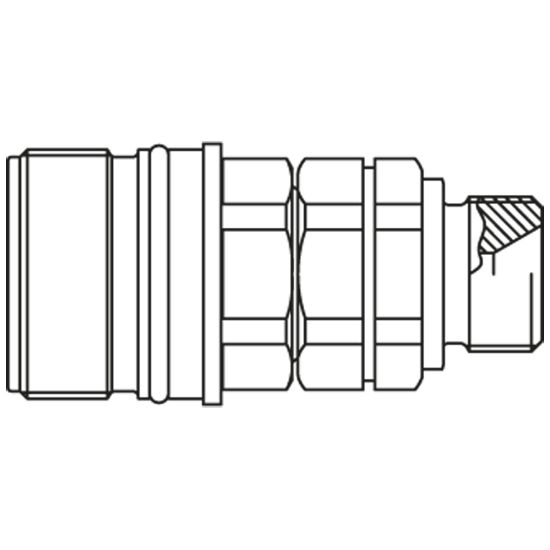

Screw-to-Connect Quick Coupling - Series QHPA - QHPA54-F4B4-C

Name: Screw-to-Connect Quick Coupling - Series QHPA - QHPA54-F4B4-C
SKU: QHPA54-F4B4-C
Availability: OutOfStock

Screw-to-connect quick coupling system made of steel with body size 3/8" up to 1" for pressure up to 450 bar.

Availability:

Backordered

SKU: QHPA54-F4B4-C

Qty:

Products specifications

Attribute name	Attribute value
Hex Size	30 mm	Maximum Operating Temperature	110 °C
Minimum Operating Temperature	-25 °C	Seal Material	NBR
Size	3 inch	Weight	301 g
Outside Diameter	n/a	Materials of Construction	Silver Plated
Division	High Pressure Connectors Europe Division	Length	72 mm
Maximum Operating Pressure	400 bar
Connection Type	Male BSPP Thread – DIN 3852 Form B	Version	N/A
Body Size	1/2"	Connection Thread Size	1/2"
Fitting Type	Coupling

Product resources

Literature and Reference Materials

Literature and Reference Materials,Selector Guides

파카_Non-Spill Quick Coupling_FEM_FF_QHPA시리즈

Compliance, Certifications & Safety

Safety instructions Quick Couplings
