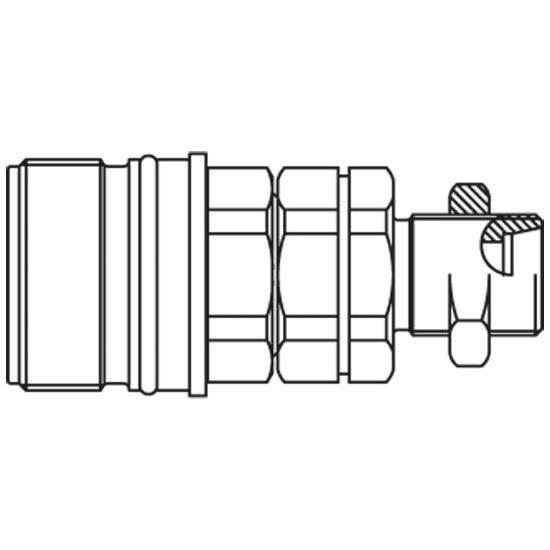

Screw-to-Connect Quick Coupling - Series QHPA - QHPA53-E6X2-C

Name: Screw-to-Connect Quick Coupling - Series QHPA - QHPA53-E6X2-C
SKU: QHPA53-E6X2-C
Availability: OutOfStock

Screw-to-connect quick coupling system made of steel with body size 3/8" up to 1" for pressure up to 450 bar.

Availability:

Backordered

SKU: QHPA53-E6X2-C

Qty:

Products specifications

Attribute name	Attribute value
Materials of Construction	Steel	Weight	167 g
Size	2 inch	Length	76 mm
Maximum Operating Temperature	110 °C	Maximum Operating Pressure	450 bar
Seal Material	NBR	Outside Diameter	n/a
Hex Size	22 mm	Minimum Operating Temperature	-25 °C
Division	High Pressure Connectors Europe Division
Connection Thread Size	14x1.5 mm	Fitting Type	Coupling
Version	Light Series	Body Size	3/8"
Connection Type	Male thread 24° cone – DIN 2353 Bulkhead
