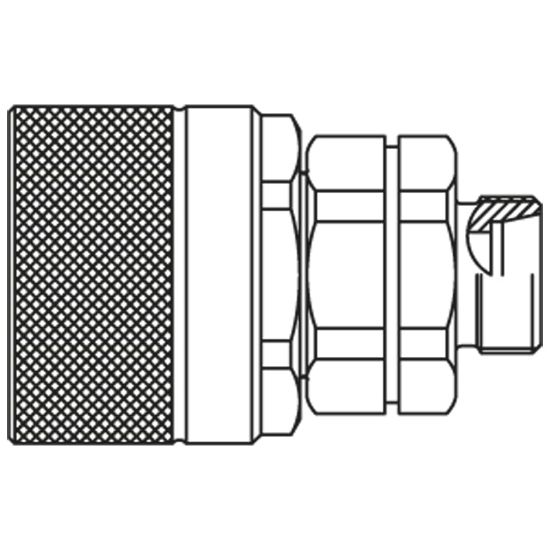

Screw-to-Connect Quick Coupling - Series QHPA - QHPA14-D7X5-C

Name: Screw-to-Connect Quick Coupling - Series QHPA - QHPA14-D7X5-C
SKU: QHPA14-D7X5-C
Availability: OutOfStock

Screw-to-connect quick coupling system made of steel with body size 3/8" up to 1" for pressure up to 450 bar.

Availability:

Backordered

SKU: QHPA14-D7X5-C

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	400 bar	Hex Size	32 mm
Materials of Construction	Steel	Seal Material	NBR
Size	3 inch	Length	65 mm
Weight	254 g	Minimum Operating Temperature	-25 °C
Outside Diameter	42 mm	Maximum Operating Temperature	110 °C
Division	High Pressure Connectors Europe Division
Connection Type	Male thread 24° cone – DIN 2353	Version	Heavy Series
Connection Thread Size	22x1.5 mm	Fitting Type	Plug
Body Size	1/2"
