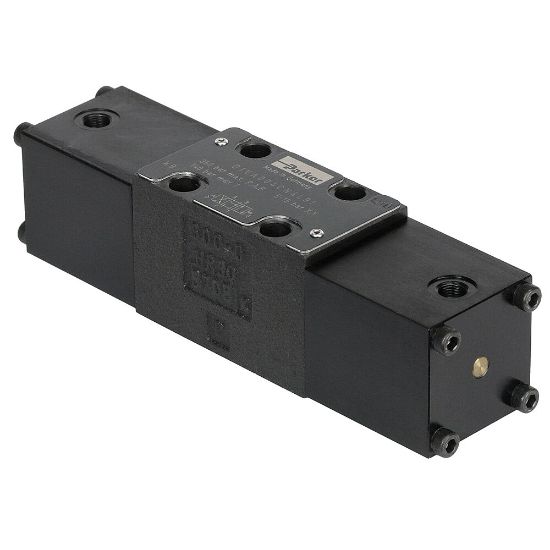

Direct Operated Directional Control Valve - Series D1VA - D1VA026BN4L

Name: Direct Operated Directional Control Valve - Series D1VA - D1VA026BN4L
SKU: D1VA026BN4L
Availability: OutOfStock

The pneumatically controlled directional control valve series D1VA in size NG06 is based on the standard D1VW design. These valves are useful to control hydraulic systems in hazardous areas.

Availability:

Backordered

SKU: D1VA026BN4L

Qty:

Products specifications

Attribute name	Attribute value
Weight	1.3 kg	Actuation Type	Pneumatic
Port Connection	NG06 / CETOP 03	Function	2-way
Maximum Flow Rate	60 L/min	Product Series	Directional Control Valve
Mounting Type	Subplate	Body Material	Cast Iron
Operation Type	Direct	Division	Industrial Systems Division Europe
Mounting Position	Unrestricted	For Fluid Type	Hydraulic Oil According to DIN 51524
Seal Material	NBR	Maximum Operating Temperature	60 °C
Maximum Operating Pressure	350 bar	Minimum Operating Temperature	-25 °C
Spool Position	2 positions, spring offset in position b, operated in position a	Seal Material	NBR
Spool Code	026
