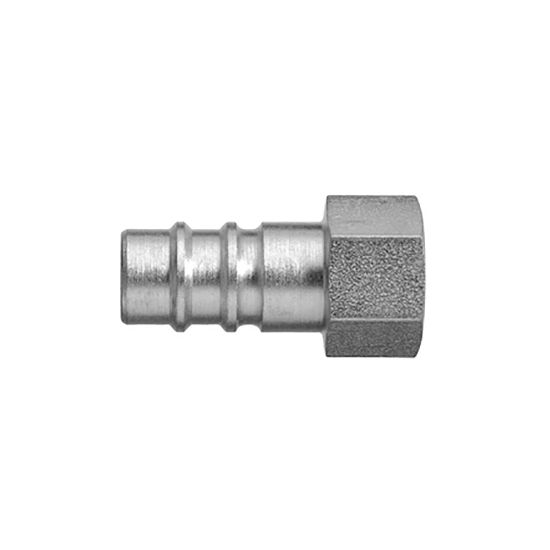

Safety Quick Coupling with Parker Profile and Additional Safety Locking, Series 28 - 28SSIW21SXN

Name: Safety Quick Coupling with Parker Profile and Additional Safety Locking, Series 28 - 28SSIW21SXN
SKU: 28SSIW21SXN
Availability: OutOfStock

Safety quick coupling system with nominal diameter 10.5 for pneumatic and fluid handling applications in the rescue market up to 35 bar. Coupling system with Parker profile. Available made of brass/steel.

Availability:

Backordered

SKU: 28SSIW21SXN

Qty:

Products specifications

Attribute name	Attribute value
Materials of Construction	Steel nickel plated	Seal Material	na
Length	42 mm	Maximum Operating Pressure	35 bar
Outside Diameter	na	Minimum Operating Temperature	-20 °C
Version	Single Shut-Off	Hex Size	24 mm
Diameter	10,5 nom	Valve Included	No
Flow Rate	3500 L/min	Division	Low Pressure Connectors Europe Division
Maximum Operating Temperature	100 °C
Connection Type	Female Thread - parallel	Hose I.D.	na
Type	Plug - Safety	Connection Thread Size (inch)	1/2

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Certificate of conformity - 2014 68 EU_connectic
