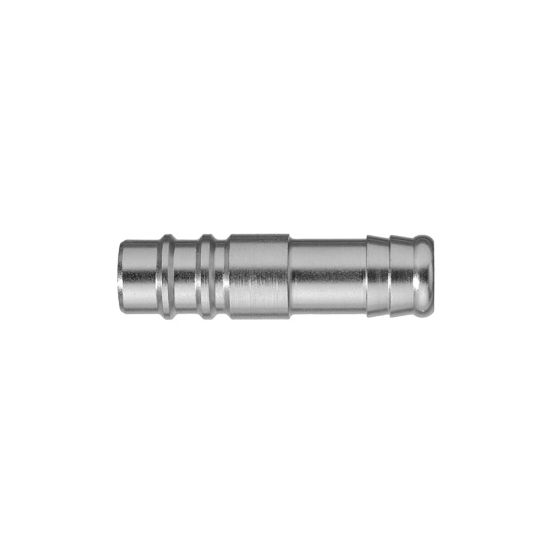

Safety Quick Coupling with Parker Profile and Additional Safety Locking, Series 28 - 28SSTF10SXN

Name: Safety Quick Coupling with Parker Profile and Additional Safety Locking, Series 28 - 28SSTF10SXN
SKU: 28SSTF10SXN
Availability: OutOfStock

Safety quick coupling system with nominal diameter 10.5 for pneumatic and fluid handling applications in the rescue market up to 35 bar. Coupling system with Parker profile. Available made of brass/steel.

Availability:

Backordered

SKU: 28SSTF10SXN

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	35 bar	Flow Rate	3500 L/min
Division	Low Pressure Connectors Europe Division	Version	Single Shut-Off
Seal Material	na	Materials of Construction	Steel nickel plated
Length	54 mm	Minimum Operating Temperature	-20 °C
Maximum Operating Temperature	100 °C	Hex Size	na
Outside Diameter	15 mm	Diameter	10,5 nom
Valve Included	No
Connection Thread Size (inch)	na	Type	Plug - Safety
Hose I.D.	10	Connection Type	Hose Barb

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Certificate of conformity - 2014 68 EU_connectic
