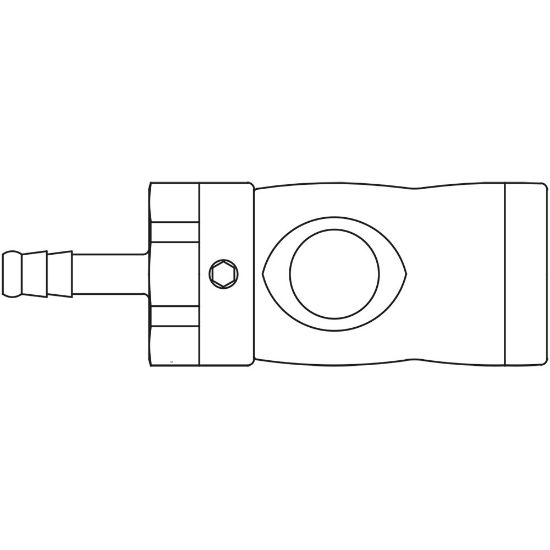

Safety Push Button Quick Coupling, Series KP - 30KPTF10APX

Name: Safety Push Button Quick Coupling, Series KP - 30KPTF10APX
SKU: 30KPTF10APX
Availability: OutOfStock

Self-venting quick coupling system with push button, nominal diameter from 5.5 to 8 mm for pneumatic applications up to 12 bar. Coupling system with ISO B, ISO C and Euro profile. Made of anodised aluminium/nickel plated brass/NBR seals.

Availability:

Backordered

SKU: 30KPTF10APX

Qty:

Products specifications

Attribute name	Attribute value
Quantity per Box	5	Division	Low Pressure Connectors Europe Division
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-20 °C
O-Ring Material	NBR	Maximum Operating Pressure	12 bar
Media	Compressed Air	Specifications Met	DI: 2002/95/EC (RoHS), 2011/65/EC, DI: 1907/2006 (REACH), ISO 4414 Pneumatic Fluid Power: General Rules Relating to Systems
Body Material	Aluminum, Anodised	Industry Application	Workshops, Cleaning, Blowing, Pneumatics, Air-Operated Tools, Ring Main Circuits, Packaging
Weight	0.16 kg
Connection Type	Hose Barb	Connection Size	10 mm
Profile	ISO B Profile	Diameter	8 DN

Product resources

Literature and Reference Materials
