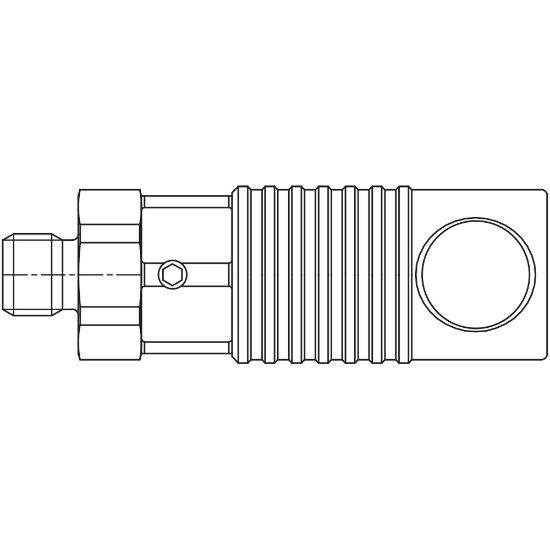

Safety Push Button Quick Coupling, Series KP - 84KPAW13APX

Name: Safety Push Button Quick Coupling, Series KP - 84KPAW13APX
SKU: 84KPAW13APX
Availability: OutOfStock

Self-venting quick coupling system with push button, nominal diameter from 5.5 to 8 mm for pneumatic applications up to 12 bar. Coupling system with ISO B, ISO C and Euro profile. Made of anodised aluminium/nickel plated brass/NBR seals.

Availability:

Backordered

SKU: 84KPAW13APX

Qty:

Products specifications

Attribute name	Attribute value
Media	Compressed Air	Body Material	Brass, Nickel-plated
Minimum Operating Temperature	-20 °C	Maximum Operating Pressure	12 bar
Quantity per Box	5	Specifications Met	DI: 2002/95/EC (RoHS), 2011/65/EC, DI: 1907/2006 (REACH), ISO 4414 Pneumatic Fluid Power: General Rules Relating to Systems
Industry Application	Workshops, Cleaning, Blowing, Pneumatics, Air-Operated Tools, Ring Main Circuits, Packaging	Weight	0.16 kg
Division	Low Pressure Connectors Europe Division	O-Ring Material	NBR
Maximum Operating Temperature	100 °C
Connection Type	Male, BSPP	Profile	ISO C Profile
Connection Size	G 1/4	Diameter	8 DN
