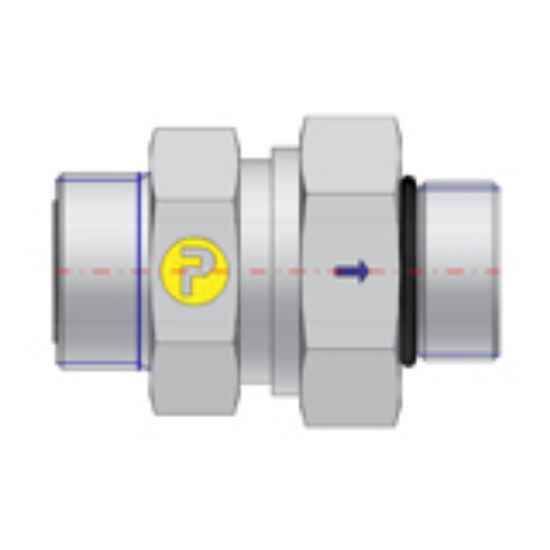

SAE Non return valves - 12RHZ5OMLOSCF

Name: SAE Non return valves - 12RHZ5OMLOSCF
SKU: 12RHZ5OMLOSCF
Availability: OutOfStock

Parker non-return valves with an ISO 8434-2 (Triple-Lok®) or 8434-3 (O-Lok®) connection offer a wide range of sizes, male threads and cracking pressures, making them very flexible.

Availability:

Backordered

SKU: 12RHZ5OMLOSCF

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °C	Body Material	Steel
Configuration	n/a	Seal Material	NBR
Maximum Flow Rate	n/a	Maximum Operating Pressure	420 bar
Actuation Type	Mechanical	Division	High Pressure Connectors Europe Division
Maximum Operating Temperature	120 °C	Connection 1 Type	O-Lok® ORFS End
Connection 2 Type	O-Lok® ORFS End	Mounting Type	Screw
Flow Direction	Tube to Port	Cracking Pressure	1 bar
Connection 1 Size	1-3/16"-12 UNF inch	Connection 2 Size	1-1/16"-12 UN inch
Seal Material	NBR	Materials of Construction	Steel
Flow Direction	Tube to Port	Connection 1 Type	O-Lok ORFS end
Connection 2 Tube Outside Diameter	n/a	Connection 1 Size	1 1/16-12 UN
Connection 2 Size	1 3/16/12 UNF	Connection 2 Type	Male UN/UNF thread - O-ring (ISO 11926)
Connection 1 Tube Outside Diameter	3/4" (18, 20 mm)

Product resources

Compliance, Certifications & Safety

Bureau Veritas Certificate 23071/CO BV

Literature and Reference Materials
