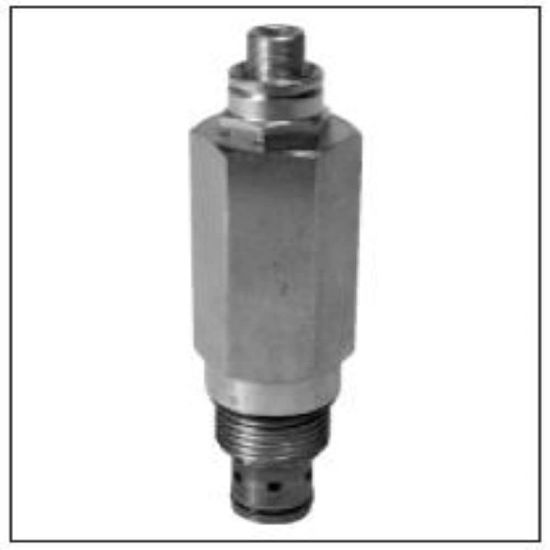

Direct Acting Relief Valves - A04B2PWN

Name: Direct Acting Relief Valves - A04B2PWN
SKU: A04B2PWN
Availability: OutOfStock

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).

Availability:

Backordered

SKU: A04B2PWN

Qty:

Products specifications

Attribute name	Attribute value
Maximum Flow Rate	100 L/min	Maximum Operating Pressure	420 bar
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Body Material	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
For Fluid Type	Synthetic Hydraulic Fluids	Filter Efficiency Rating	SAE Class 4
Minimum Operating Temperature	-34 °C	Function	Direct Acting
Configuration	Pressure Relief	Mounting Type	Screw-in Cartridge
Actuation Type	Pressure Sensing	Maximum Pressure Setting	420 bar
Flow Rate	26 Gal/min	Weight	0.28 kg
Division	Mobile Hydraulic Systems Division Europe	Leak Rate	5 drops/min @ 1450 Psi (100 bar)
Cavity Size	C10-2	Operation Type	Automatic
Valve Material	Hardened Steel (all operating parts)	Reseat Pressure	n/a
Installation Torque	37 lb-ft	Adjustment Mechanism	Knob
Maximum Tank Pressure	6000 psi	Operating Temperature	-30 to 250 °F
Pressure Control Range	5 to 420 bar	Standard Setting Pressure	2900 psi
Wire Mesh Screen Included	n/a	Pressure Control Sensitivity	630 psi Per Turn
Maximum Inlet Pressure Rating	6000 psi
Seal Material	Nitrile	Flow Rate	28 GAL/MIN, 100 L/MIN
Adjustment Mechanism	Knob	Pressure Control Range	72-6000 PSI, 5-420 BAR
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR
