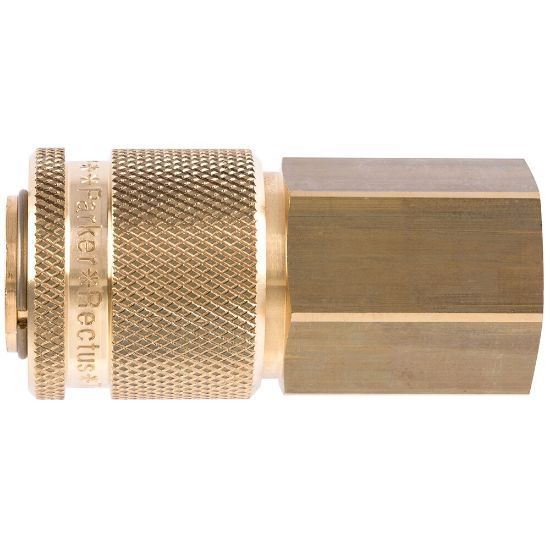

Quick Coupling with ISO 6150 B Profile, Series 37 - 37KAIW21MPX

Name: Quick Coupling with ISO 6150 B Profile, Series 37 - 37KAIW21MPX
SKU: 37KAIW21MPX
Availability: OutOfStock

Quick coupling system with nominal diameter 11 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 B profile and according to US MIL-SPEC 4109. Available made of brass.

Availability:

Backordered

SKU: 37KAIW21MPX

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	NBR	Length	73 mm
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Hex Size	30 mm	Diameter	11 nom
Minimum Operating Temperature	-20 °C	Version	Single Shut-Off
Valve Included	Yes	Flow Rate	2600 L/min
Outside Diameter	35 mm	Maximum Operating Pressure	35 bar
Connection Thread Size (inch)	1/2	Connection Type	Female Thread
Hose I.D.	na	Material	Brass
Type	Coupling
