Tru-Flate, Automotive Interchange Quick Connect Air Couplings - 10 Series - B13E

Parker's general purpose Tru-Flate pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	307 in stock

SKU: B13E

$27.20

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Seal Material	Nitrile
Division	Quick Coupling Division	Maximum Operating Pressure	300 psi
Maximum Operating Temperature	250 °F	Product Type	Manual Connect
Application	Pneumatic	Interchange Type	Tru-Flate design
Valve Type	Tubular	Hex Size	0.81 inch
Dimensional Weight	0.026658673061550762 lb	Plating Type	na
Body Material	BRASS	Body Size (inch)	1/4
Hose I.D. (inch)	na	Connection Thread Size (inch)	3/8 - 18
Coupling Half	Female Coupler	Connection Type	Female NPTF

Customers who bought this item also bought

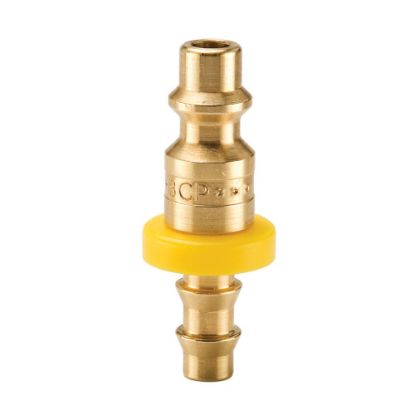

Pneumatic Industrial Interchange Nipples (A-A-59439, MIL-C-4109F, ISO 6150-B) - BH8CP
