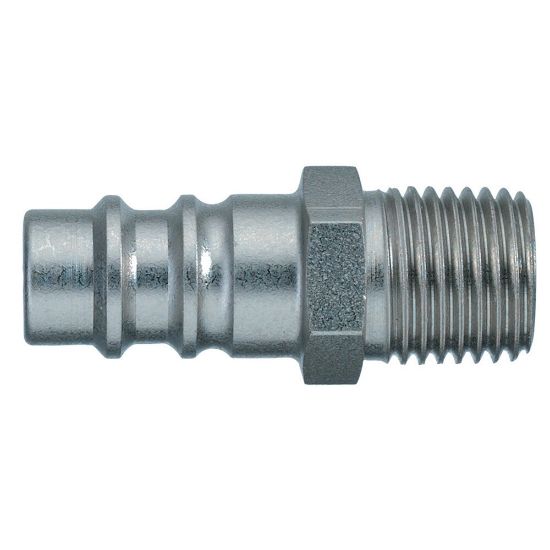

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 26SSAW13MXN

Name: Quick Coupling, European profile, ND 7.8 (Series 25, Series 1600, Series 1625) - 26SSAW13MXN
SKU: 26SSAW13MXN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.8 for pneumatic (series 25, 1600 and 1625), liquids and gas applications (series 25) up to 35 bar. Available in nickel-plated brass, steel, stainless steel (technical polymer sleeve for series 1625).

Availability:

Backordered

SKU: 26SSAW13MXN

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.019 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	1	Division	Low Pressure Connectors Europe Division
Body Material	BRASS	For Fluid Type	Compressed Air
Brand	Parker	Shape	Straight
Connection Size	G 1/4	Seal Material	Without seal
Minimum Operating Temperature	down to -40 °C	Valve Included	No
Technology	Pneumatics	Industry	General Industrial
Hex Size	17 mm	Length	33 mm
Flow Rate	1800 L/min	Region of Origin	Germany
Connection Type	Male	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Diameter	7.8 mm (nominal)	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Sleeve Material	Steel	Interchange Type	European Profile
Maximum Operating Temperature	up to 464 °F	Valve Type	Without Valve
Coupling Half	Plug	Application	Safety & Rescue
Function	Safety (straight-through)	Product Series	Series 26 - Safety
Materials of Construction	Brass, Nickel-plated	Version	Single Shut-Off
Connection Size	1/4"	Connection Type	Male, BSPP
Coupling Half	Plug - Safety
