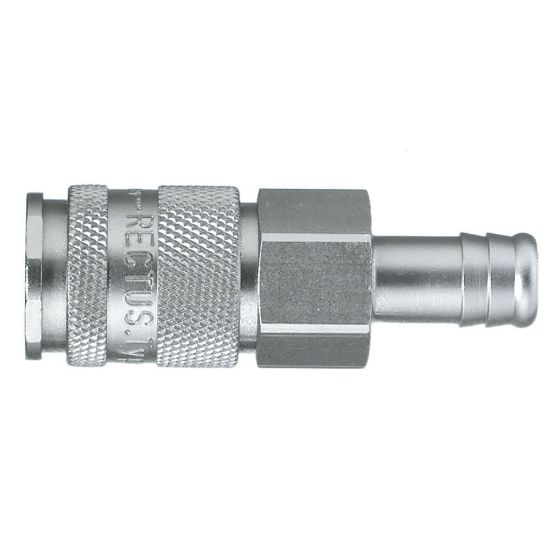

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KATF19MPN

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KATF19MPN
SKU: 27KATF19MPN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 27KATF19MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Sleeve Material	BRASS	Seal Material	NBR
Specifications Met	RoHS	Shape	Straight
Minimum Operating Temperature	-4 °F	Valve Included	Yes
Coupling Half	Coupler	Maximum Operating Temperature	212 °F
Technology	Pneumatics	Length	76 mm
Industry	General Industrial	Outside Diameter	27 mm
Hex Size	24 mm	Region of Origin	Germany
Connection Type	Hose Barb	Application	Air & Gas Compressor
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Brand	Rectus	Function	Single Shut-Off
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Diameter	10 mm (nominal)	Connection Size	19 mm
Compatible Fitting	Series 27 Plug	For Fluid Type	Breathing Air
Valve Type	High Flow Valve	Flow Rate	2400 L/min (air)
Product Series	Series 27	Maximum Flow Rate	2400 L/min (air)
Weight	0.1583 kg
Connection Type	Hose Barb	Materials of Construction	Brass, Nickel-plated
Version	Single Shut-Off	Coupling Half	Coupler
Connection Size	19 mm
