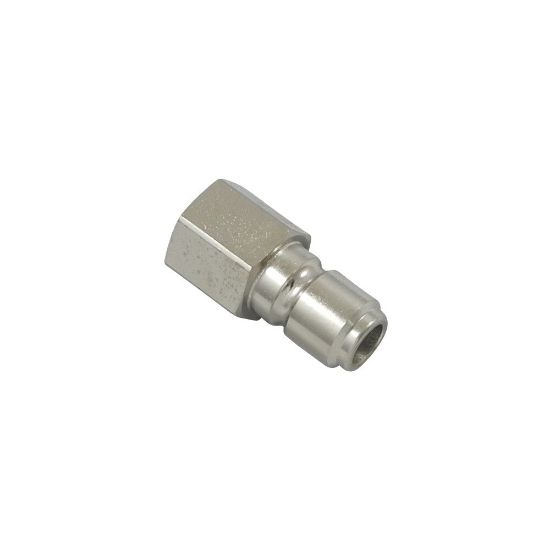

Quick Coupling with Parker own Profile, Series 45 - 45SFIW17SXN

Name: Quick Coupling with Parker own Profile, Series 45 - 45SFIW17SXN
SKU: 45SFIW17SXN
Availability: OutOfStock

Quick coupling system with nominal diameter 8.5 for pneumatic and fluid handling applications up to 150 bar. Coupling system with Parker own profile. Available made of brass/steel.

Availability:

Backordered

SKU: 45SFIW17SXN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Seal Material	n/a
Valve Included	No	Outside Diameter	n/a
Maximum Operating Pressure	15 bar	Length	40 mm
Hex Size	22 mm	Materials of Construction	Steel nickel plated
Version	Straight-Through	Diameter	8.5 nom
Flow Rate	97 L/min
Type	Plug	Connection Thread Size (inch)	3/8
Connection Type	Female Thread - parallel
