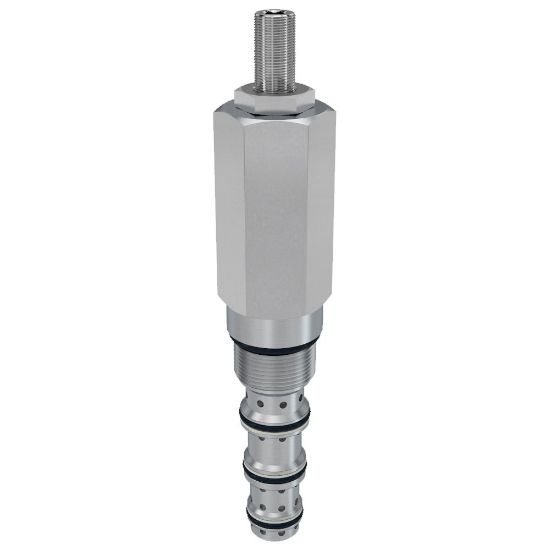

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Unloading Relief Valves - M04A4JZN

Name: Unloading Relief Valves - M04A4JZN
SKU: M04A4JZN
Availability: OutOfStock

Parker’s unloading pressure control valves automatically charge and maintain a specific pressure range within accumulators by loading and unloading pump flow. Usable with fixed or variable pumps and pressure of 420 bar (6000 psi) and flow up to 1 gpm.

Availability:

Backordered

SKU: M04A4JZN

Qty:

Products specifications

Attribute name	Attribute value
Operating Temperature	-30 to +250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Flow Rate	2 L/min	Maximum Pressure Setting	2900 psi
Seal Material	Nitrile	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Standard Setting Pressure	125 bar	Division	Hydraulic Cartridge Systems Division
Maximum Inlet Pressure Rating	420 bar	Minimum Operating Temperature	-30 °F
Actuation Type	Pressure Sensing	Flow Rate	0.53 Gal/min
Maximum Operating Pressure	420 bar	Maximum Operating Temperature	+250 °F
Leak Rate	N/A drops/min	Adjustment Mechanism	Screw
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Pressure Control Range	725-2900 psi
Installation Torque	50 Nm	Body Material	n/a
Function	Unloading Relief Valve	Cavity Size	C10-4
Division	Mobile Hydraulic Systems Division Europe	Valve Material	All parts steel. All operating parts hardened steel
Weight	0.33 kg	Maximum Tank Pressure	6000 psi
Maximum Flow Rate	0.53 GAL/MIN, 2 L/MIN	Seal Material	Nitrile
Pressure Control Range	725-2900 PSI, 50-200 BAR	Adjustment Mechanism	Screw
