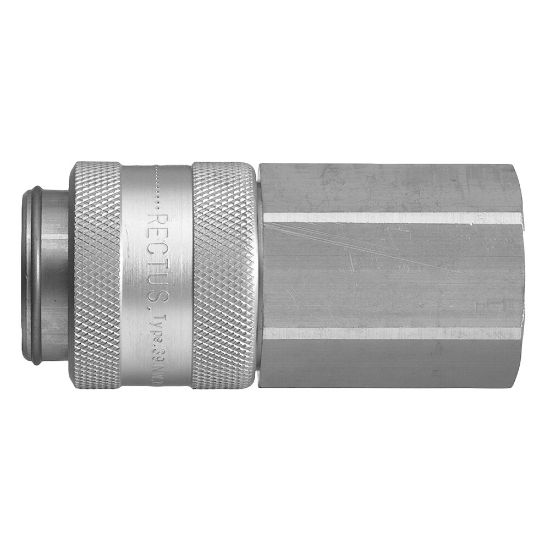

Quick Coupling with Parker own Profile, Series 39 - 39KBIW33MPN

Name: Quick Coupling with Parker own Profile, Series 39 - 39KBIW33MPN
SKU: 39KBIW33MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 19 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Parker own profile. Available made of brass.

Availability:

Backordered

SKU: 39KBIW33MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Seal Material	NBR
Maximum Operating Pressure	35 bar	Valve Included	Yes
Hex Size	41 mm	Outside Diameter	46 mm
Length	100 mm	Diameter	19 nom
Flow Rate	3000 L/min
Type	Coupling	Hose I.D.	na
Material	Brass nickel plated	Connection Type	Female Thread - parallel
Version	Double Shut-Off	Connection Thread Size (inch)	1
