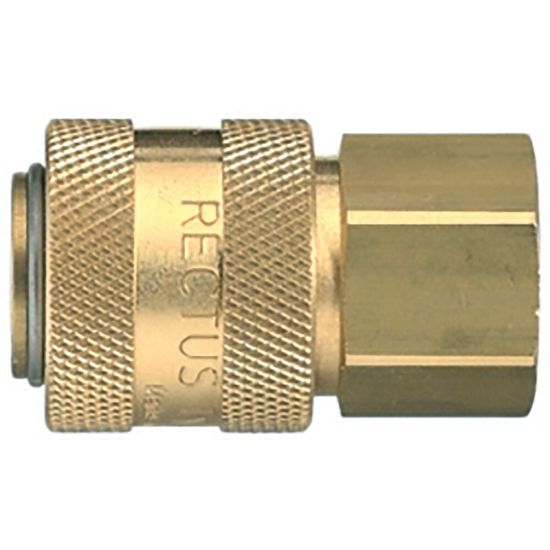

Quick Coupling with Japanese Industrial Profile, Series 13 - 13KAIW13MPN

Name: Quick Coupling with Japanese Industrial Profile, Series 13 - 13KAIW13MPN
SKU: 13KAIW13MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Japanese industrial profile. Available made of brass.

Availability:

Backordered

SKU: 13KAIW13MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Seal Material	NBR
Maximum Operating Pressure	35 bar	Version	Single Shut-Off
Valve Included	Yes	Length	45 mm
Outside Diameter	27 mm	Hex Size	22 mm
Flow Rate	1150 L/min	Diameter	7,5 nom
Type	Coupling	Hose I.D.	na
Connection Thread Size (inch)	1/4	Material	Brass nickel plated
Connection Type	Female Thread - parallel
