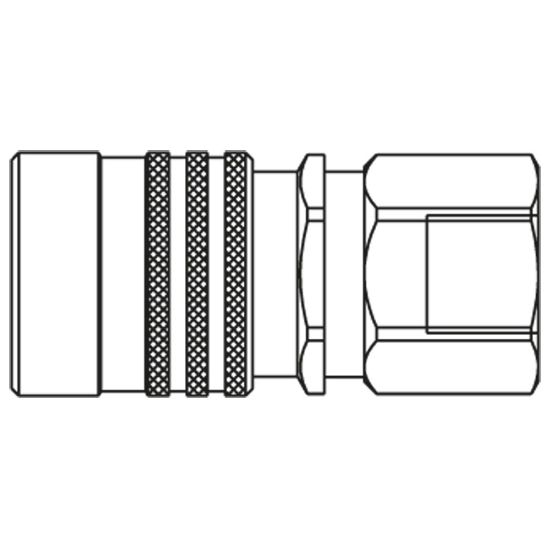

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure Quick Coupling with Parker Profile, Series HP - HP1010 4172

Name: High Pressure Quick Coupling with Parker Profile, Series HP - HP1010 4172
SKU: HP1010 4172
Availability: OutOfStock

High pressure quick coupling with body size 1/4" for high pressure applications up to 1500 bar. Coupling system with Parker profile.

Availability:

Backordered

SKU: HP1010 4172

Qty:

Products specifications

Attribute name	Attribute value
Burst Pressure	>3000 bar	Length	59 mm
Division	High Pressure Connectors Europe Division	Hex Size	24 mm
Body Size	1/4 inch	Seal Material	NBR
Outside Diameter	27 mm	Materials of Construction	steel, Zinc Plated
Additional Safety Feature	Safety Locking	Connection Type	Female Thread
Type	Coupling	Maximum Working Pressure (Bar)	1000
Connection Thread Size (inch)	3/8
