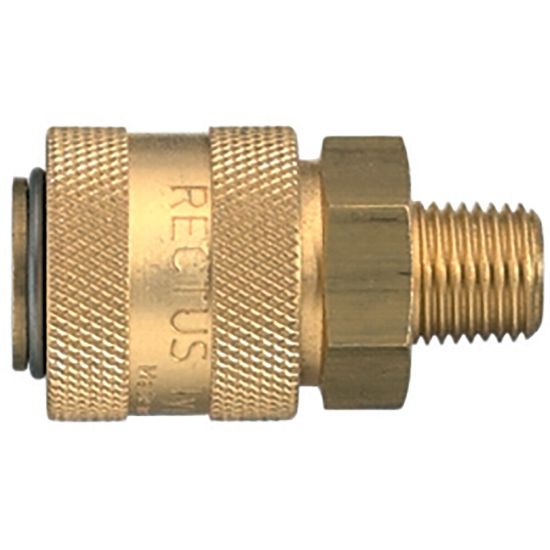

Quick Coupling with Japanese Industrial Profile, Series 13 - 13KAAK21MPX

Name: Quick Coupling with Japanese Industrial Profile, Series 13 - 13KAAK21MPX
SKU: 13KAAK21MPX
Availability: OutOfStock

Quick coupling system with nominal diameter 7.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Japanese industrial profile. Available made of brass.

Availability:

Backordered

SKU: 13KAAK21MPX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Seal Material	NBR
Maximum Operating Pressure	35 bar	Version	Single Shut-Off
Valve Included	Yes	Outside Diameter	27 mm
Hex Size	22 mm	Flow Rate	1150 L/min
Length	53 mm	Diameter	7,5 nom
Type	Coupling	Material	Brass
Hose I.D.	na	Connection Thread Size (inch)	1/2
Connection Type	Male Thread - tapered
