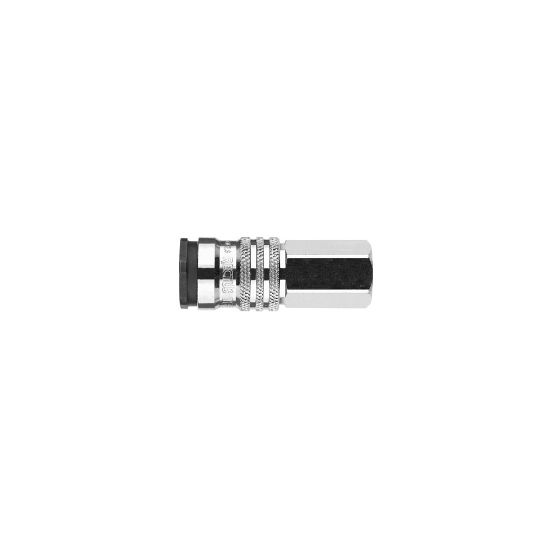

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 1700KBIW21BPN

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 1700KBIW21BPN
SKU: 1700KBIW21BPN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 1700KBIW21BPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-20 °C
Seal Material	NBR	For Fluid Type	Compressed Air
Shape	Straight	Coupling Half	Coupler
Technology	Pneumatics	Industry	General Industrial
Outside Diameter	27 mm	Hex Size	24 mm
Region of Origin	Germany	Connection Type	Female
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Brand	Rectus
Valve Type	Ultra High Flow Valve	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Connection Size	G 1/2	Interchange Type	European Profile
Function	Double Shut-Off	Flow Rate	1054 L/min
Length	67.5 mm	Application	Energy Management
Diameter	10 mm (nominal)	Product Series	Series 1700
Sleeve Material	Steel (QPQ-treated)	Compatible Fitting	Series 27 Plug
Materials of Construction	Brass	Version	Double Shut-Off
Coupling Half	Coupler	Connection Size	1/2"
Connection Type	Female, BSPP
