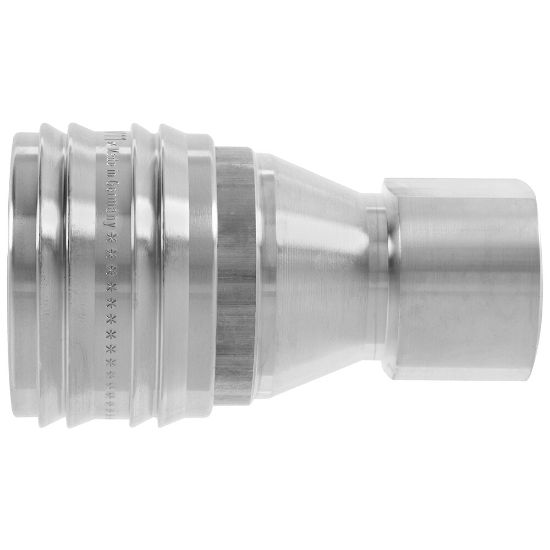

Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 72KBIW13EEX

Name: Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 72KBIW13EEX
SKU: 72KBIW13EEX
Availability: OutOfStock

Quick coupling system with nominal diameter 4.3 up to 20 for pneumatic and fluid handling applications up to 250 bar. Coupling system with a worldwide used ISO 7241-1 series B profile. Available made of brass or stainless steel.

Availability:

Backordered

SKU: 72KBIW13EEX

Qty:

Products specifications

Attribute name	Attribute value
Version	Double Shut-Off	Minimum Operating Temperature	-40 °C
Flow Rate	840 L/min	Valve Included	Yes
Hex Size	19 mm	Maximum Operating Temperature	150 °C
Seal Material	EPDM	Outside Diameter	29 mm
Maximum Operating Pressure	250 bar	Application	Pneumatic & Fluid Handling
Length	57,5 mm	Body Size	1/4 inch
Division	Low Pressure Connectors Europe Division
Connection Thread Size	1/4	Type	Coupling
Material	AISI 316 L	Connection Type	Female Thread - parallel
