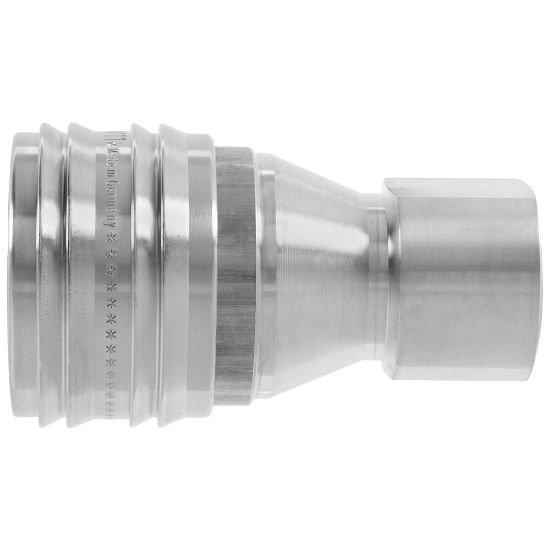

Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 72KBIW13RVX

Name: Quick Coupling with ISO 7241-1 Series B Profile, Series 70 - 72KBIW13RVX
SKU: 72KBIW13RVX
Availability: OutOfStock

Quick coupling system with nominal diameter 4.3 up to 20 for pneumatic and fluid handling applications up to 250 bar. Coupling system with a worldwide used ISO 7241-1 series B profile. Available made of brass or stainless steel.

Availability:

Backordered

SKU: 72KBIW13RVX

Qty:

Products specifications

Attribute name	Attribute value
Hex Size	19 mm	Outside Diameter	29 mm
Minimum Operating Temperature	-15 °C	Maximum Operating Pressure	250 bar
Body Size	1/4 inch	Division	Low Pressure Connectors Europe Division
Application	Fluid Handling	Length	57.5 mm
Maximum Operating Temperature	200 °C	Flow Rate	840 L/min
Version	Double Shut-Off	Valve Included	Yes
Seal Material	FKM
Type	Coupling	Connection Type	Female Thread - parallel
Connection Thread Size	1/4	Material	AISI 303
