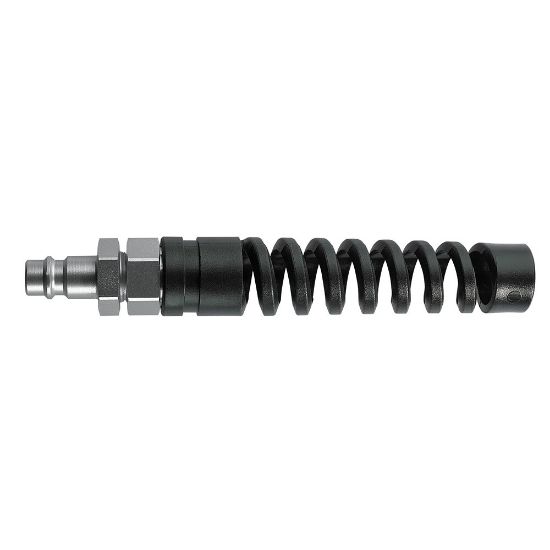

Quick Coupling, European Profile, ND 7.2 (Series 26) - 26SFKU13MXN

Name: Quick Coupling, European Profile, ND 7.2 (Series 26) - 26SFKU13MXN
SKU: 26SFKU13MXN
Availability: OutOfStock

Quick coupling system with nominal diameter 7.2 for pneumatic applications up to 35 bar. Available in brass sleeve or polymer.

Availability:

Backordered

SKU: 26SFKU13MXN

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.051 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	10	Division	Low Pressure Connectors Europe Division
Body Material	BRASS	Industry	Transportation
Seal Material	Without seal	For Fluid Type	Air
Technology	Fluid & Gas Handling	Region of Origin	Germany
Connection Type	Hose Barb	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Brand	Rectus	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Function	Straight-Through
Valve Type	Without Valve	Coupling Half	Plug
Application	Safety & Rescue	Maximum Operating Temperature	up to 212 °F
Product Series	Series 26	Diameter	7.2 mm (nominal)
Flow Rate	1070 L/min (air)	Compatible Fitting	Series 26 Coupler
Minimum Operating Temperature	down to -20 °C	Length	30 to 150 mm
Connection Size	9.5x13 mm
Connection Type	Hose Barb	Materials of Construction	Brass, Nickel-plated
Version	Straight-Through	Coupling Half	Plug
Connection Size	9.5x13 mm
