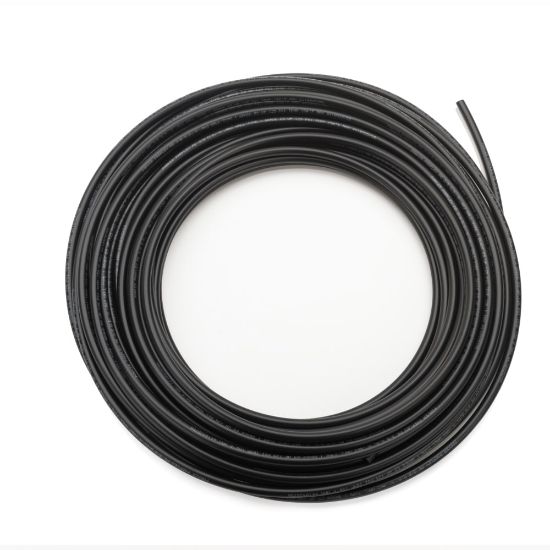

PE Tubing - EB-86-0500

Polyethylene Tubing - E/EB Series Tubing is instrument grade tubing, made from 100% virgin Linear Low Density Polyethylene (LLDPE). Ideal for water, food, beverages and food grade applications.

Availability:	3450 in stock
Partner Available:	5189 in stock

SKU: EB-86-0500

$0.78

Products specifications

Attribute name	Attribute value
Minimum Burst Pressure	24.8 bar	Division	Parflex Division
Minimum Operating Temperature	-80 °F	Weight	0.051 kg/m
Tube Outside Diameter	1/2 inch	Specifications Met	ASTM D1693
Cover Color	n/a	Maximum Operating Temperature	66 °C
Maximum Operating Pressure	0.62 MPa	Compatible Fitting	Dubl-Barb®
Media	Air	Length per Package	500 ft
Application	Fluid Transfer	Color	Black
Tube Material	Polyethylene (PE)	Product Type	Fractional
Tube Inside Diameter	9.5 mm	Minimum Bend Radius	2-1/2 inch
Size	1/2 inch	Cover Material	n/a
Order Size	.375	Color	BLACK
Product Type	Fractional, UV Resistant	Standard Pack Qty (ft)	500
