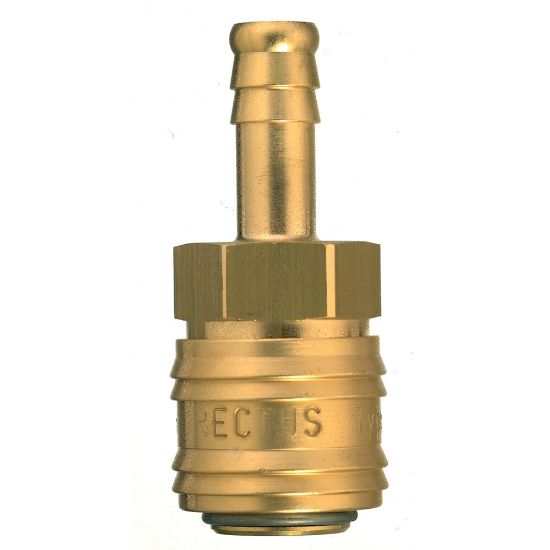

Quick Coupling, European Profile, ND 7.2 (Series 26) - 26KBTF13MVX

Name: Quick Coupling, European Profile, ND 7.2 (Series 26) - 26KBTF13MVX
SKU: 26KBTF13MVX
Availability: OutOfStock

Quick coupling system with nominal diameter 7.2 for pneumatic applications up to 35 bar. Available in brass sleeve or polymer.

Availability:

Backordered

SKU: 26KBTF13MVX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Specifications Met	RoHS	Minimum Operating Temperature	-4 °F
Valve Included	Yes	Coupling Half	Coupler
For Fluid Type	Air	Technology	Pneumatics
Seal Material	FKM	Industry	General Industrial
Hex Size	21 mm	Length	58 mm
Outside Diameter	25 mm	Region of Origin	Germany
Connection Type	Hose Barb	Product Style	Quick-Connect
Compatible Fitting	Series 25 Plug	Maximum Operating Pressure	up to 35 bar
Brand	Rectus	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	13 mm
Interchange Type	European Profile	Function	Double Shut-Off
Valve Type	Standard Valve	Application	Food & Beverages
Plating Type	Without Surface Treatment	Maximum Operating Temperature	up to 100 °C
Product Series	Series 26	Diameter	7.2 mm (nominal)
Flow Rate	950 L/min (air)	Weight	0.0811 kg
Connection Type	Hose Barb	Materials of Construction	Brass
Version	Double Shut-Off	Coupling Half	Coupler
Connection Size	13 mm
