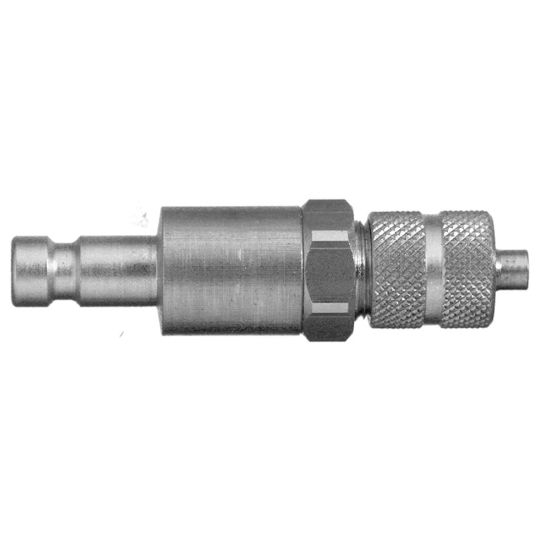

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBKO04RVX

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBKO04RVX
SKU: 20SBKO04RVX
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20SBKO04RVX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Shape	Straight
Valve Included	Yes	Technology	Fluid & Gas Handling
Minimum Operating Temperature	5 °F	Seal Material	FKM
Maximum Operating Temperature	200 °C	Industry	General Industrial
Length	36 mm	Body Material	Stainless Steel 303
Region of Origin	Germany	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Brand	Rectus	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Function	Double Shut-Off	Application	Energy Management
Product Series	Series 20	Connection Type	Tube with Hose Nut, without Spring Guard
Weight	0.008 kg	Diameter	2.7 mm (nominal)
Valve Type	Standard Valve	Plating Type	Without Surface Treatment
Connection Size	3x4 mm	Hex Size	9 mm (external)
Flow Rate	1.2 L/min (water)	For Fluid Type	Inert Gas
Coupling Half	Plug	Compatible Fitting	Series 20 Coupler
Type	Plug	Connection Thread Size	n/a
Version	Double Shut-Off	Hose I.D.	3x4 mm
Connection Size	3x4 mm	Connection Type	With Plastic Hose Connection
Materials of Construction	Stainless Steel AISI 303	External Hex (mm)	9
Coupling Half	Plug
