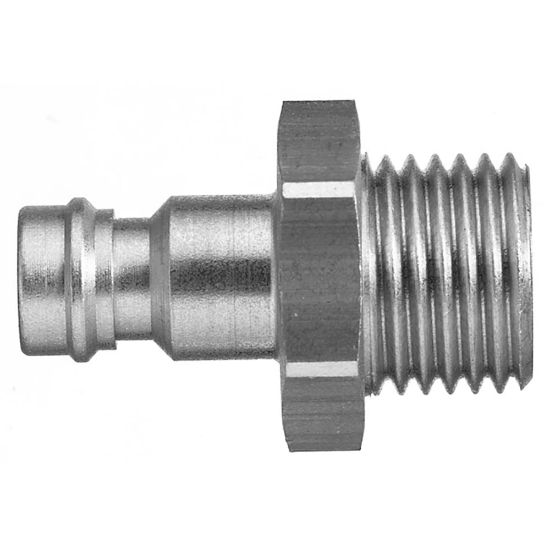

Quick Coupling, European profile, ND 5 (Series 21) - 21SSAW13MXX

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21SSAW13MXX
SKU: 21SSAW13MXX
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21SSAW13MXX

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.018 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	5	Division	Low Pressure Connectors Europe Division
Body Material	BRASS	Operation Type	n/a
Brand	Parker	Shape	Straight
Connection Size	G 1/4	Seal Material	Without seal
Valve Included	No	For Fluid Type	Air
Technology	Fluid & Gas Handling	Industry	Healthcare & Life Sciences
Hex Size	17 mm	Region of Origin	Germany
Connection Type	Male	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Product Type	Pneumatic Quick Couplings	Interchange Type	European Profile
Plating Type	Without Surface Treatment	Maximum Operating Temperature	up to 464 °F
Valve Type	Without Valve	Coupling Half	Plug
Minimum Operating Temperature	down to -40 °F	Application	Safety & Rescue
Diameter	5 mm (nominal)	Product Series	Series 21
Flow Rate	550 L/min (air)	Function	Safety (straight-through)
Compatible Fitting	Series 21 Coupler
Materials of Construction	Brass	Version	Single Shut-Off
Connection Size	1/4"	Connection Type	Male, BSPP
Coupling Half	Plug - Safety
