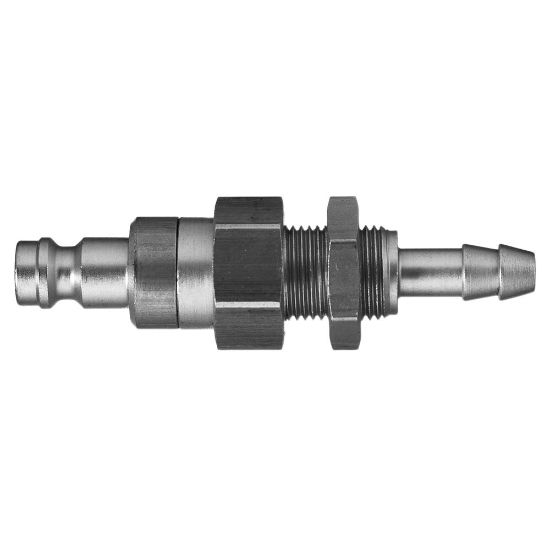

Quick Coupling, European profile, ND 5 (Series 21) - 21SLTS10MPN

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21SLTS10MPN
SKU: 21SLTS10MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21SLTS10MPN

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.04 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	1	Division	Low Pressure Connectors Europe Division
Body Material	BRASS	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Seal Material	NBR
Operation Type	n/a	Valve Included	Yes
Technology	Fluid & Gas Handling	Application	Electronics
Hex Size	14 mm	Region of Origin	Germany
Specifications Met	ATEX	Product Style	Quick-Connect
Brand	Rectus	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Connection Size	10 mm
Interchange Type	European Profile	Industry	Electronics
Valve Type	Standard Valve	For Fluid Type	Chemical Fluids
Connection Type	Hose Barb Panel Mount	Coupling Half	Plug
Diameter	5 mm (nominal)	Product Series	Series 21
Flow Rate	2.7 L/min (water)	Function	Dry-Break (double shut-off)
Maximum Operating Pressure	up to 8 bar
Connection Type	Hose Barb	Materials of Construction	Brass, Nickel-plated
Connection Size	10 mm	Coupling Half	Plug
Version	Dry-Break (double shut-off)
