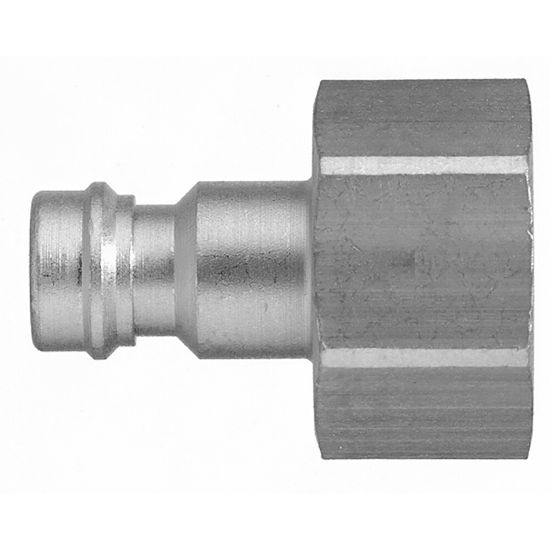

Quick Coupling, European profile, ND 5 (Series 21) - 21SSIW13MXN

Name: Quick Coupling, European profile, ND 5 (Series 21) - 21SSIW13MXN
SKU: 21SSIW13MXN
Availability: OutOfStock

Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.

Availability:

Backordered

SKU: 21SSIW13MXN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Application	Industrial Machinery
Body Material	BRASS	Weight	0.017 kg
Operation Type	n/a	Specifications Met	RoHS
Brand	Parker	Shape	Straight
Connection Size	G 1/4	Seal Material	Without seal
Maximum Operating Temperature	up to 240 °C	Minimum Operating Temperature	down to -40 °C
Valve Included	No	For Fluid Type	Air
Technology	Fluid & Gas Handling	Industry	General Industrial
Hex Size	17 mm	Region of Origin	Germany
Connection Type	Female	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Interchange Type	European Profile
Valve Type	Without Valve	Coupling Half	Plug
Diameter	5 mm (nominal)	Product Series	Series 21
Flow Rate	550 L/min (air)	Function	Safety (straight-through)
Compatible Fitting	Series 21 Coupler
Materials of Construction	Brass, Nickel-plated	Version	Single Shut-Off
Connection Size	1/4"	Connection Type	Female, BSPP
Coupling Half	Plug - Safety
