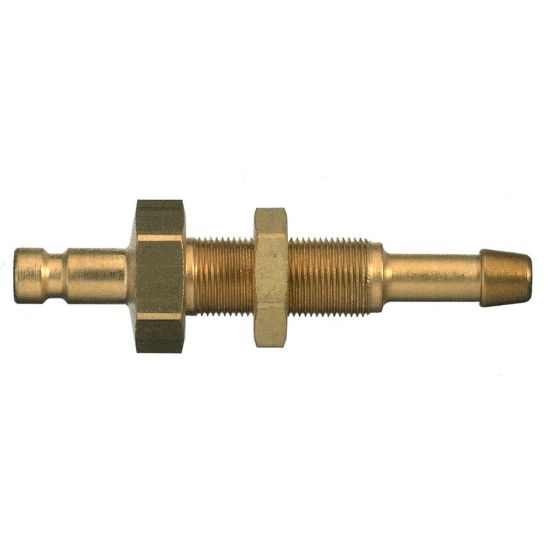

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SFTS04MXN

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SFTS04MXN
SKU: 20SFTS04MXN
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20SFTS04MXN

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.012 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	5	Division	Low Pressure Connectors Europe Division
Body Material	BRASS	Specifications Met	RoHS
Shape	Straight	Seal Material	Without seal
Maximum Operating Temperature	up to 240 °C	Valve Included	No
For Fluid Type	Air	Technology	Pneumatics
Application	Medical	Industry	General Industrial
Length	45 mm	Region of Origin	Germany
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Brand	Rectus	Plating Type	Nickel-plated
Operation Type	Sleeve	Interchange Type	European Profile
Product Series	Series 20	Diameter	2.7 mm (nominal)
Hex Size	12 mm (external)	Connection Size	4 mm
Connection Type	Hose Barb Panel Mount	Function	Straight-Through
Flow Rate	1.5 L/min (water)	Valve Type	Without Valve
Product Type	Pneumatics Quick Couplings	Coupling Half	Plug
Compatible Fitting	Series 20 Coupler	Minimum Operating Temperature	down to -40 °F
Type	Plug	Connection Type	Panel Mount with Hose Barb
Connection Thread Size	n/a	Materials of Construction	Brass, Nickel-plated
Version	Single Shut-Off	External Hex (mm)	12
Hose I.D.	4 mm	Connection Size	4 mm
Coupling Half	Plug
