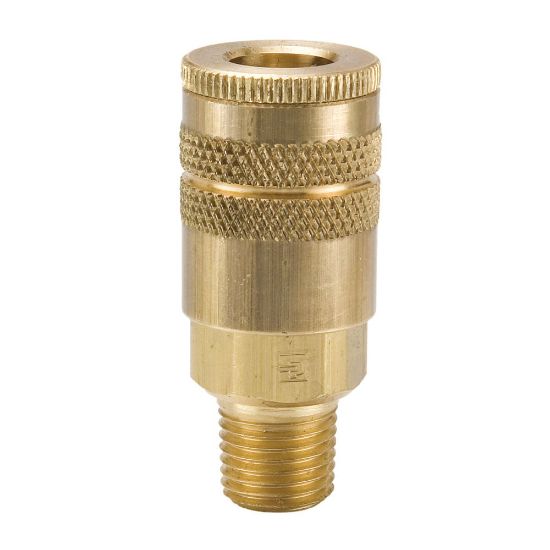

Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series - B22E

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	53 in stock
Partner Available:	1146 in stock

SKU: B22E

$20.55

Products specifications

Attribute name	Attribute value
Sleeve Type	Manual	Seal Material	Nitrile
Maximum Operating Pressure	300 psi	Application	Air
Media	Low pressure fluids and compressed air	Maximum Operating Temperature	250 °F
Lock Type	Locking balls	Minimum Operating Temperature	-40 °F
Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B	Valve Type	Tubular
Plating Type	na	Dimensional Weight	0.026658673061550762 lb
Division	Quick Coupling Division	Coupling Half	Coupler
Body Size (inch)	1/4	Connection Type	NPTF
Connection Thread Size (inch)	3/8 - 18	Body Material	BRASS
Connection Hose I.D. (inch)	na	Thread Style	Male
