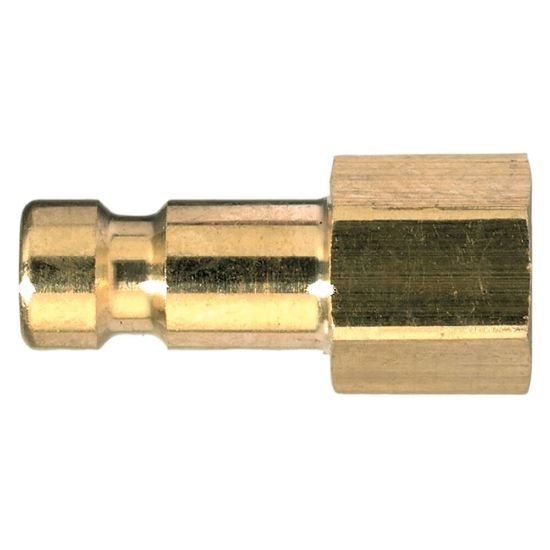

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SFIM05MXX

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SFIM05MXX
SKU: 20SFIM05MXX
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20SFIM05MXX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Application	Industrial Machinery
Body Material	BRASS	Specifications Met	RoHS
Shape	Straight	Seal Material	Without seal
Valve Included	No	Technology	Pneumatics
Industry	Healthcare & Life Sciences	Region of Origin	Germany
Connection Type	Female	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Brand	Rectus
Operation Type	Sleeve	Interchange Type	European Profile
Product Series	Series 20	Diameter	2.7 mm (nominal)
Plating Type	Without Surface Treatment	Connection Size	M5
Maximum Operating Temperature	up to 464 °F	For Fluid Type	Inert Gas
Function	Straight-Through	Flow Rate	1.5 L/min (water)
Valve Type	Without Valve	Product Type	Pneumatics Quick Couplings
Coupling Half	Plug	Compatible Fitting	Series 20 Coupler
Length	17 mm	Weight	0.0025 kg
Hex Size	7 mm (external)	Minimum Operating Temperature	down to -40 °F
Type	Plug	Hose I.D.	n/a
Connection Type	Female, Metric	Materials of Construction	Brass
Version	Single Shut-Off	Connection Size	5 mm
Connection Thread Size	5 mm	Coupling Half	Plug
External Hex (mm)	7
